⚙️ PRODUCT DESCRIPTION

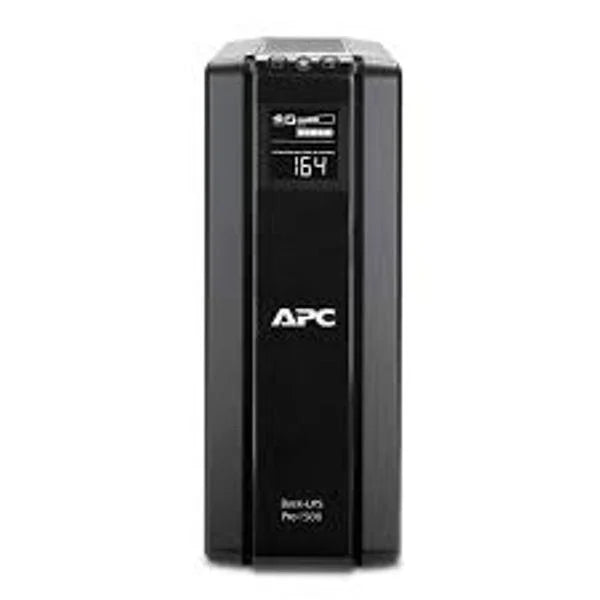

The APC Back-UPS Pro BR1500G-IN (1500VA / 865W) s a high-performance line-interactive UPS designed to provide reliable power backup and advanced protection for computers, networking devices, and home office equipment. Built for Indian power conditions, this UPS ensures consistent performance even during voltage fluctuations and power outages. With a power capacity of 1500VA / 865 Watts, the BR1500G-IN is ideal for supporting high-end desktop PCs, workstations, gaming systems, routers, and other sensitive electronics. It features Automatic Voltage Regulation (AVR) that stabilizes input voltage without switching to battery mode, thereby extending battery life and ensuring uninterrupted operation.
⚙️ KEY FEATURES
- LCD Status Display: A front-facing screen provides real-time data on battery charge, load in watts, input/output voltage, and estimated runtime.
- Energy Management: Includes a Green Mode that bypasses unused electrical components in good power conditions to improve efficiency.
- Data Protection: Provides data line surge protection for 10/100/1000 Base-T Ethernet (RJ-45) and analog phone lines.
⚙️ APPLICATION
- Desktop PCs & Workstations
- Gaming Systems
- Routers & Networking Equipment
- Home Offices & Small Businesses
- Entertainment Systems
⚙️ TECHNICAL SPECIFICATION
| Parameter | Specification |
|---|---|
| Model | APC Backups Pro BR1500G-IN |
| Capacity | 1500 VA / 865 Watts |
| UPS Topology | Line-Interactive |
| Input Voltage Range | 170V – 294V |
| Nominal Input Voltage | 230V |
| Input Frequency | 50/60 Hz ± 3 Hz (auto sensing) |
| Output Voltage | 230V |
| Output Frequency | 50/60 Hz ± 1 Hz |
| Waveform Type | Stepped Approximation to Sine Wave |
| Transfer Time | Typical 6–10 ms |
| Battery Type | Sealed Lead-Acid, Maintenance-Free |
| Battery Voltage | 24V |
| Battery Recharge Time | Approx. 8 Hours to 90% |
| Backup Time | Depends on load (typically 10–30 minutes) |
| Output Connections | 6 Total (4 Battery Backup + Surge, 2 Surge Only) |
| Surge Protection Rating | Yes (Built-in) |
| AVR (Automatic Voltage Regulation) | Yes |
| Display Type | LCD Display (Status & Parameters) |
| Communication Interface | USB |
| Software Support | PowerChute® Personal Edition |
| Audible Alarms | Battery Mode, Low Battery, Overload |
| Hot-Swappable Battery | Yes |
| User Replaceable Battery | Yes |
| Operating Temperature | 0°C to 40°C |
| Noise Level | < 45 dB |
| Form Factor | Tower |
| Dimensions (H x W x D) | Approx. 301 x 112 x 382 mm |
| Weight | Approx. 12.7 kg |
| Warranty | 2 Years |
| Ideal Applications | PCs, Workstations, Routers, Home Offices |
