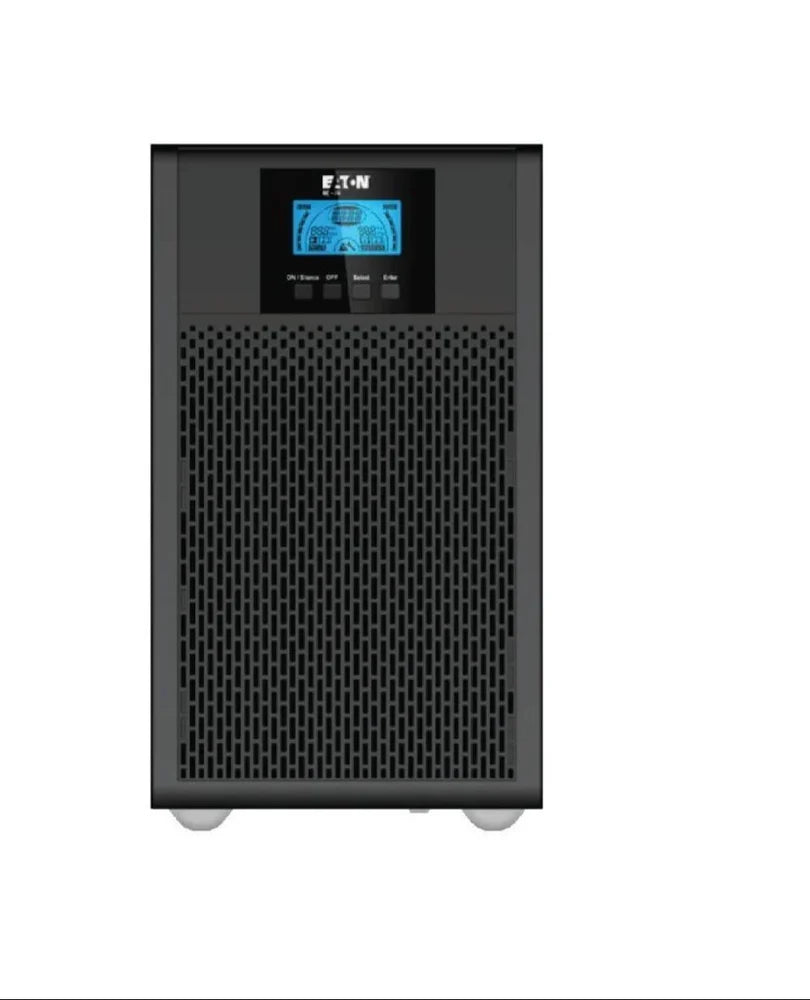

Eaton Online Tower UPS 9E-6KIN Internal Battery System

📌 Product Overview

The Eaton 9E-6K-IN 6kVA Online Tower UPS is a robust double-conversion online UPS engineered for mission-critical applications such as data centers, server rooms, telecom infrastructure, and industrial environments. With 6000VA capacity and high efficiency, it ensures continuous, clean, and reliable power supply even under unstable grid conditions in India.

⚙️ Technical Specifications

🔌 Power Rating

• Capacity: 6000 VA / 6000 Watts
• Topology: Online Double Conversion
• Output Waveform: Pure Sine Wave
• Output Power Factor: 0.99

🔋 Battery Specifications

• Battery Type: External Battery System
• DC Bus Voltage: 192V DC (16 Batteries Typical)
• Battery Compatibility: 12V SMF/VRLA Batteries
• Features:
  • Scalable backup time
  • High-capacity charger
  • Deep discharge protection
  • Intelligent battery management

⚡ Input Specifications

• Nominal Voltage: 230V (Single Phase)
• Input Voltage Range: 110–300V
• Frequency Range: 40–70 Hz
• Input Power Factor: >0.98

🔌 Output Specifications

• Output Voltage: 220/230/240V ±2%
• Output Frequency: 50/60 Hz
• Voltage Regulation: ±2%
• Harmonic Distortion:
  • <3% (Linear Load)
  • <6% (Non-linear Load)
• Transfer Time: 0 ms (True Online)

🖥️ Communication & Interface

• USB Communication
• RS232 Port
• SNMP Card Support (Optional)
• LCD Display Panel
• Intelligent alarms & monitoring system

🌍 Physical & Environmental

• Form Factor: Tower (Free-standing)
• Design: Industrial-grade robust body
• Operating Temperature: 0°C to 40°C
• Humidity: 0–95% non-condensing
• Efficiency: Up to 91–93%

🛠️ Key Features

• True online double-conversion UPS
• Zero transfer time for uninterrupted power
• External battery support for long backup
• Wide input voltage range for Indian conditions
• Intelligent monitoring & protection system
• Reliable performance for critical loads

🚀 Key Highlights

• 6kVA online UPS for industrial & IT applications
• External battery UPS for long backup
• Pure sine wave UPS for sensitive equipment
• Reliable UPS for Indian power conditions
• Ideal for servers, telecom, CCTV & automation systems

Value Proposition:

The Eaton 9E6K-IN is a 6 kVA / 6 kW true online double-conversion UPS, providing high-efficiency (up to 95%) power protection for IT equipment, servers, and industrial applications. It features a single-phase input/output, a wide voltage range of 110–275VAC, and an internal battery configuration (16x 12V/7Ah), designed for high reliability with a unity power factor and a 2-year warrant on UPS 1 year on Battery. The Eaton 9E6K-IN Online UPS is a high-performance UPS, designed to provide reliable power backup for critical applications. It ensures continuous, clean, and stable power supply, protecting sensitive equipment from power disturbances, outages, and voltage fluctuations.

High Performance
kVA=kW
True Input PF 0.99
True output Unity PF 1
Input THDi 3%
Output THDv 1%
Higher Power Density
Higher Efficiency upto 95%
Support Critical Virtualization

High Reliability and Adaptability
Wide Input Voltage Range
Inbuilt Hardware Current Limit Technology
Upgraded Phase Lock Algorithm
Inbuilt Over-voltage Cut-off Device
Inbuilt Over Temperature Protection
Upto 50 Degree Celsius operation @50%
Load (Specific to XL Model)
Better Overload Protection upto 105% Constant

High Flexibility and Availability
Adjustable Battery Voltage 192 Vdc-240 Vdc
Adjustable Charging Current 0 A-4 Amps
Parallel Operation upto 3 UPS’s
Better Short Ckt Handling Capacity
Auto Fault Recovery
Inbuilt Maintenance Bypass Switch
Conformal Coated Boards
More Accessories

Technical Specification of  Eaton 9E-IN 6000

Acceptable Input Voltage	110VAC-275VAC
Description	Eaton 06kVA/06kW 1x1 (Inbuilt Battery)
Phase	Single phase with ground
Input Power Factor	≥0.995
Input Frequency Range	45-55Hz / 54-66Hz
Output Power(VA) max	6000
Output Power(W) max	6000
Output Power Factor	1.0
Output Waveform	Pure sine wave
DC Voltage	192VDC (192V~240V adjustable)
Charger Current	default 1.4A (0~4A adjustable)
WxHxD (mm)	225*589*452
Operating Temperature Range	0°C ~ 40 °C (40~50°C 50% load )
Audible Noise	≤55dB
Relative Humidity	0 ~ 95% (No condensing)
Battery	12V/ 7AH*16No's
Price	₹, 89,500/-* + GST

Terms and Condition apply*
