SRV1KL-IN
SRV1KL-IN
Regular price
Rs. 0.00
Regular price
Sale price
Rs. 0.00
Unit price
/
per
Taxes included.
SKU:SRV1KL-IN
🔹 PRODUCT DESCRIPTION

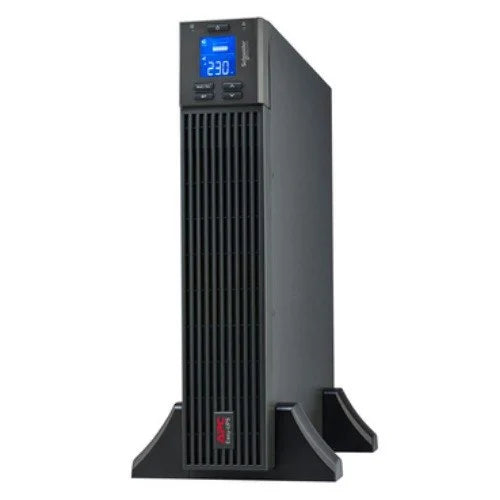

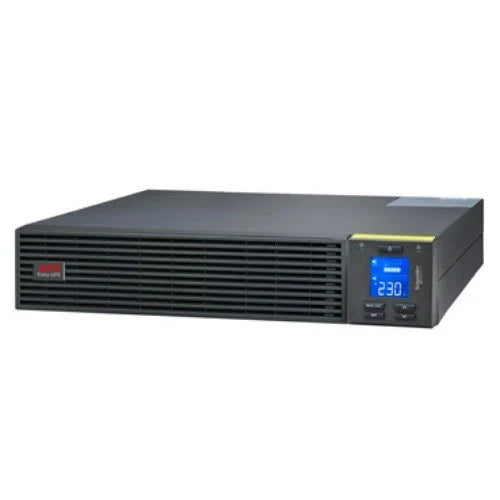

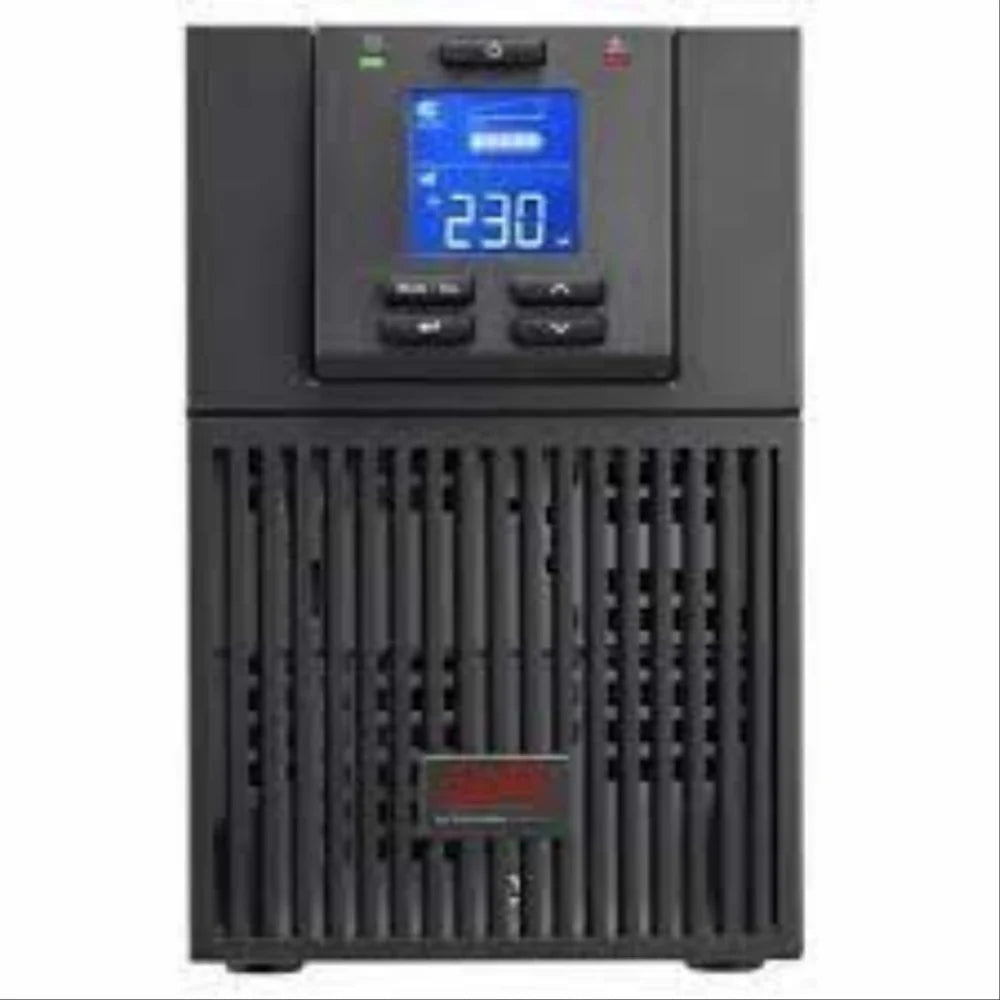

The APC Easy UPS SRV1KL-IN is a 1kVA / 1000VA online UPS that delivers pure sine wave output, ensuring uninterrupted and stable power supply to sensitive electronic devices. With its double-conversion technology, the UPS isolates connected equipment from power fluctuations, voltage variations, and outages. Designed for Indian power conditions, this model supports a wide input voltage range, making it ideal for areas with frequent voltage fluctuations. The compact tower design allows easy installation in offices and server rooms with limited space.
🔹 KEY FEATURES
- Online Double Conversion Technology
Provides zero transfer time, ensuring uninterrupted power to critical loads. - Pure Sine Wave Output
Ensures compatibility with sensitive IT equipment and servers. - Wide Input Voltage Range
Operates efficiently even in unstable power environments, reducing battery usage. - LCD Display Interface
User-friendly display for monitoring input/output voltage, load level, and battery status. -
Cold Start Capability
Allows the UPS to start without utility power. - Automatic Voltage Regulation (AVR)
Maintains stable output without switching to battery frequently. - Compact Tower Design
Space-saving and easy to deploy in small offices or IT setups.
🔹 BENIFITS
- Protects critical equipment from power disturbances
- Minimizes downtime and data loss
- Improves equipment lifespan
- Cost-effective solution for continuous power backup.
🔹 TECHNICAL HIGHLIGHTS
| PARAMETER | SPECIFICATION |
|---|---|
| Model | SRV1KL-IN |
| UPS Topology | Online Double Conversion |
| Power Capacity | 1 kVA / 800 Watts |
| Input Voltage Range | 110 – 300 V AC |
| Input Frequency | 40 – 70 Hz (Auto Sensing) |
| Output Voltage | 230 V AC ± 1% |
| Output Frequency | 50/60 Hz ± 0.1 Hz |
| Waveform Type | Pure Sine Wave |
| Transfer Time | 0 ms (Zero Transfer Time) |
| Battery Type | Sealed Lead Acid (VRLA) |
| Battery Configuration | 2 × 12V Internal Batteries |
| Backup Time | Depends on Load (Typically 10–20 mins at 50% load) |
| Charging Time | 4–6 Hours to 90% capacity |
| Efficiency | Up to 88% (Online Mode) |
| Display Type | LCD Display Panel |
| Communication Ports | USB / RS232 |
| Audible Alarm | Yes (Battery Mode, Low Battery, Fault) |
| Protection Features | Overload, Short Circuit, Battery Deep Discharge, Overcharge |
| Operating Temperature | 0°C to 40°C |
| Noise Level | < 50 dB |
| Form Factor | Tower |
| Net Weight | Approx. 9–10 kg |
| Dimensions (WxDxH) | Approx. 145 × 282 × 220 mm |
