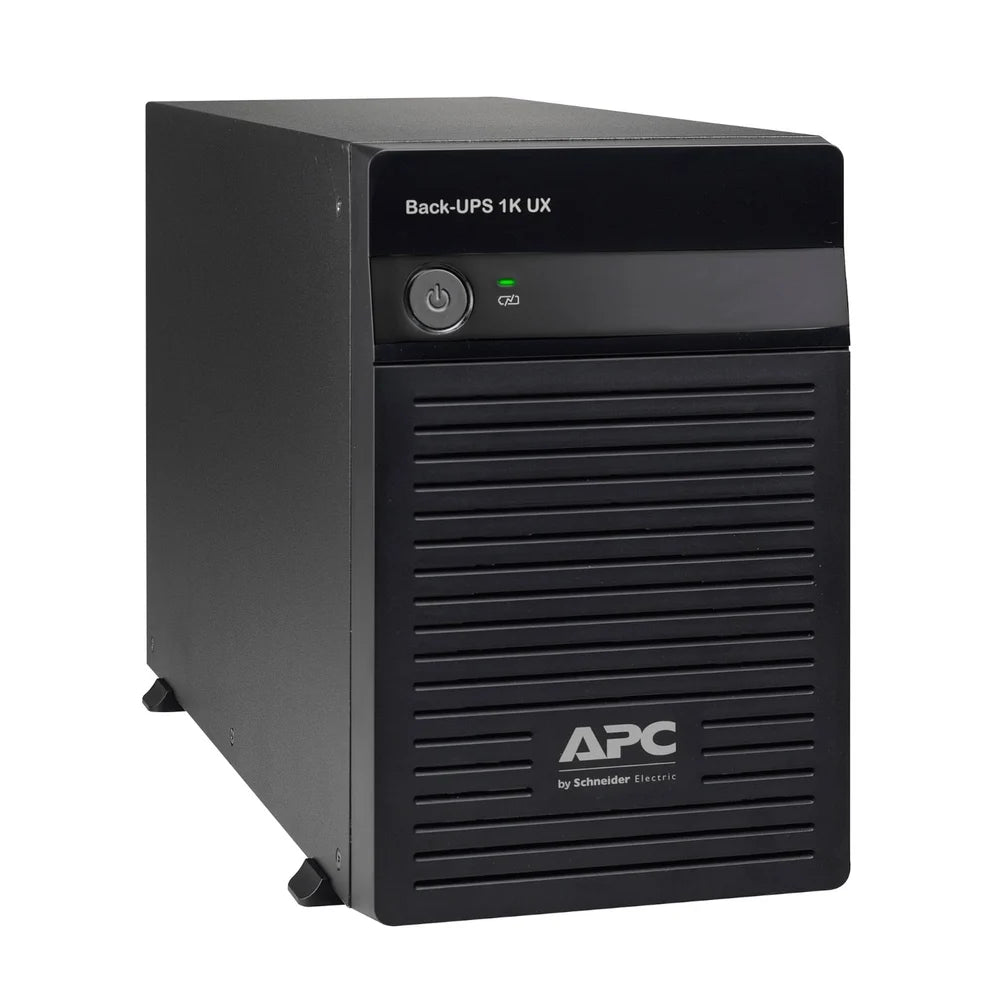

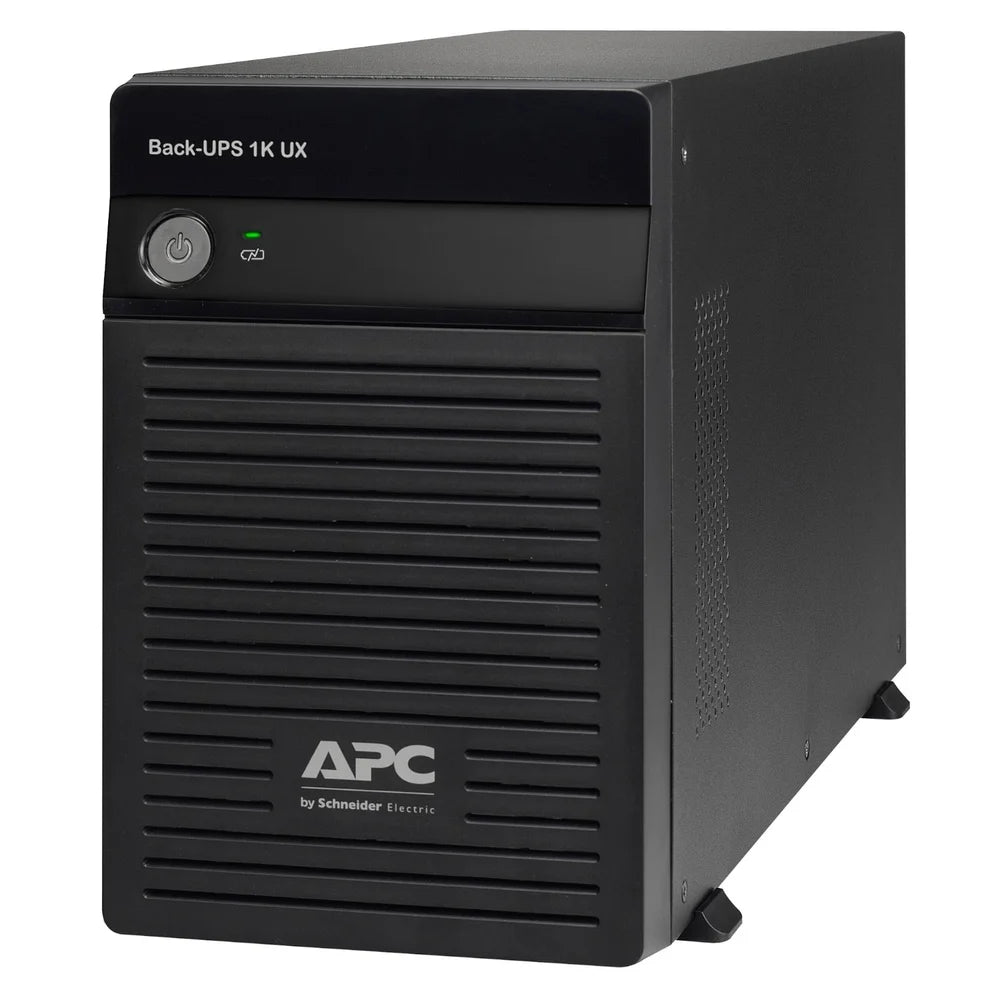

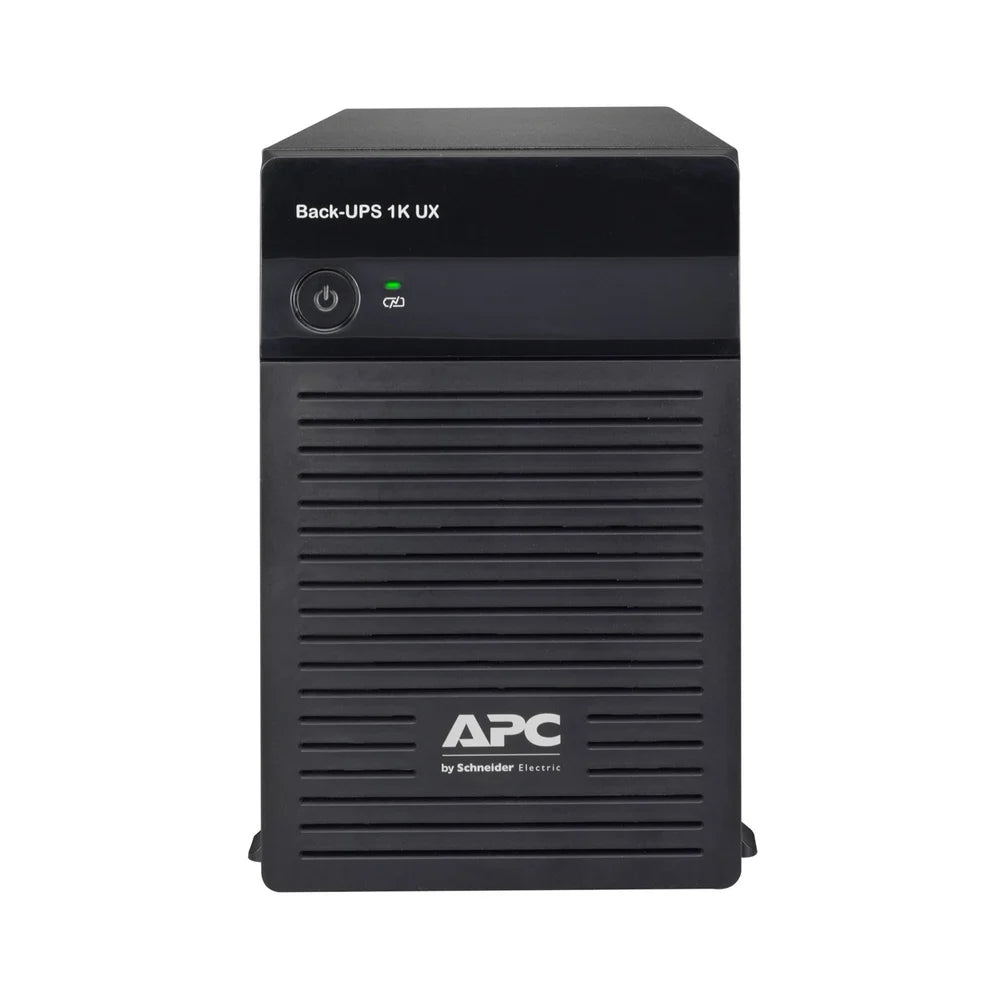

BX1000UX
BX1000UX
Regular price
Rs. 0.00
Regular price
Sale price
Rs. 0.00
Unit price
/
per
Taxes included.
SKU:BX1000UX
⚙️ PRODUCT DESCRIPTION
The APC BX1000UX is a reliable and efficient line-interactive UPS system designed to provide uninterrupted power protection for computers, networking devices, and essential electronics. With a capacity of 1000VA / 600 Watts, the BX1000UX is ideal for home offices, small businesses, and IT environments that require dependable backup power. Its advanced line-interactive topology automatically regulates voltage (AVR), correcting under-voltage and over-voltage conditions without draining the battery, thereby enhancing battery life and efficiency.
⚙️ MAIN FEATURES
- Flexible Battery Compatibility : Features a powerful, selectable charger (5A/10A/15A/20A) that supports both SMF (Sealed Maintenance Free) and flooded/tubular batteries.
- Automatic Voltage Regulation (AVR) : Automatically adjusts high and low voltage fluctuations to safe levels for connected electronics.
- Generator Compatibility: Works with gensets across a wide frequency range (40Hz–70Hz), making it suitable for areas with unstable power.
- Status Monitoring : Equipped with an LED status display and audible alarms to notify users of utility power changes or UPS conditions.
- Safety & Protection : Includes a resettable circuit breaker for overload protection and is safety-agency approved.
⚙️ TECHNICAL SPECIFICATION
| Parameter | Specification |
|---|---|
| Model | APC BX1000UX / BX1000UXI |
| UPS Type | Line Interactive UPS |
| Capacity | 1000 VA |
| Output Power | 600 Watts |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Frequency Range | 40 – 70 Hz |
| Output Frequency | 50 Hz ± 1 Hz |
| Waveform Type | Stepped approximation to sine wave |
| Topology | Line Interactive |
| Transfer Time | 8 ms typical, 12 ms maximum |
| Efficiency | Up to 92% at full load |
| Battery Type | External battery (not inbuilt) |
| Battery Voltage | 12V DC (external) |
| Battery Configuration | Supports 1 external battery (18Ah – 200Ah optional) |
| Backup Time | Depends on external battery capacity |
| Output Connections | 3-pin / 5-pin Indian sockets (battery + surge protected) |
| Input Connection | India 3-pin 6A plug |
| Indicators | LED status indicators |
| Alarms | Audible alarms for power events |
| Protection | Surge, spike & overload protection |
| Battery Management | Intelligent battery management with auto self-test |
| Form Factor | Tower |
| Weight | Approx. 9.3 kg |
| Dimensions (L×W×H) | 39.2 × 14.5 × 22 cm |
| Warranty | 2 Years (UPS) |
| Applications | PCs, routers, CCTV, small office equipment |
