SUA750I-IND
SUA750I-IND
Regular price
Rs. 0.00
Regular price
Sale price
Rs. 0.00
Unit price
/
per
Taxes included.
SKU:SUA750I-IND
✅ PRODUCT OVERVIEW

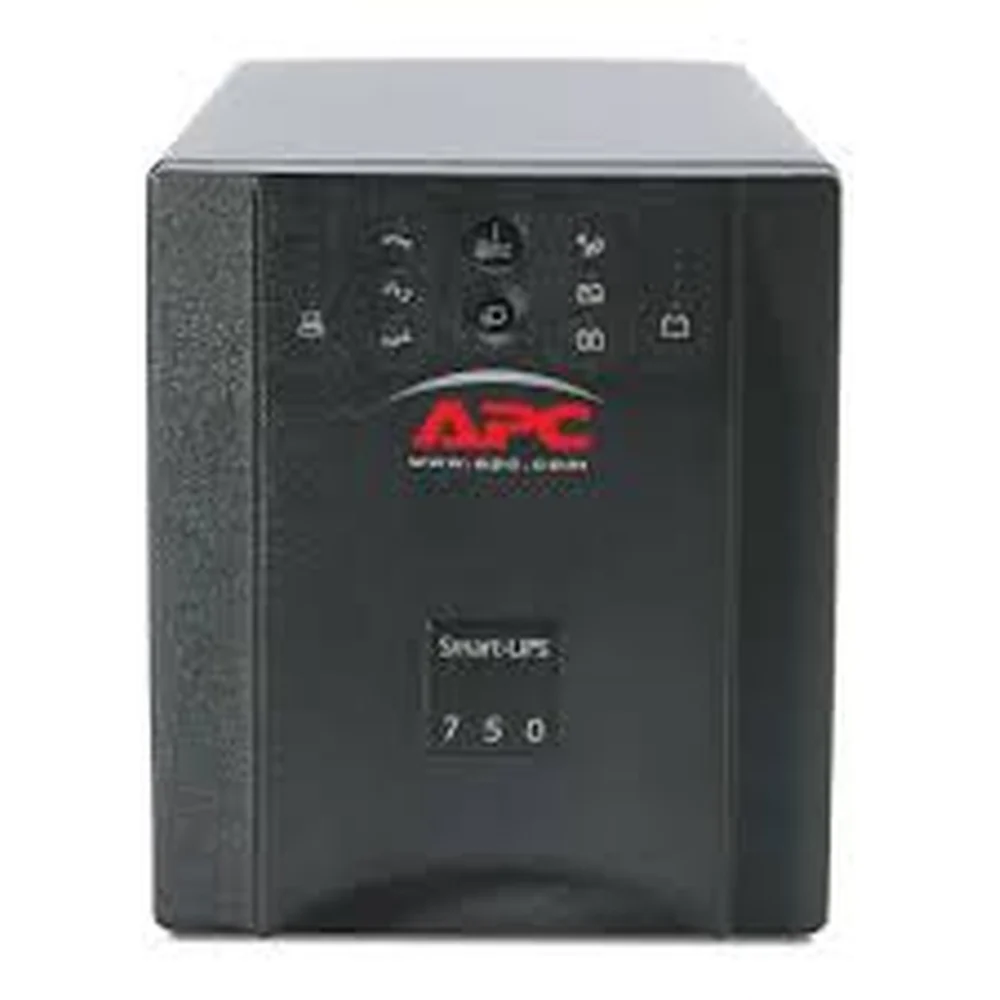

The APC Smart-UPS SUA750I-IND is a high-performance line-interactive UPS designed to provide reliable power backup and protection for critical IT equipment such as servers, workstations, networking devices, and POS systems. Built with APC’s trusted Smart-UPS technology, it ensures consistent performance, improved uptime, and safe shutdown of connected systems during power disturbances. This UPS delivers an output capacity of 750VA / 500W, making it ideal for small business environments, server rooms, and professional workstations. It features pure sine wave output, ensuring compatibility with sensitive electronics and modern power supplies.
✅ KEY FEATURES
-
Line-Interactive Topology
Provides efficient power conditioning with Automatic Voltage Regulation (AVR) to correct voltage fluctuations without switching to battery. -
Reliable Battery Backup
Offers backup time ranging from a few minutes at full load to extended runtime at lower loads, suitable for safe shutdown and short-term continuity. -
Pure Sine Wave Output
Ensures stable and clean power output, protecting sensitive IT and electronic equipment. -
Advanced Communication Ports
Equipped with USB and Serial connectivity, enabling automatic shutdown and power management via software. -
Hot-Swappable & User-Replaceable Batteries
Allows easy battery replacement without powering down connected equipment, reducing downtime.
✅ APPLICATIONS
- Small servers and entry-level data centers
- Desktop PCs and workstations
- Networking equipment (routers, switches)
- CCTV and security systems
- Retail POS systems and office automation.
✅ TECHNICAL SPECIFICATION
| Parameter | Specification |
|---|---|
| Model | SUA750I-IND |
| UPS Type / Topology | Line Interactive |
| Power Capacity | 750 VA / 500 Watts |
| Output Waveform | Pure Sine Wave |
| Nominal Input Voltage | 230V AC |
| Input Voltage Range | 160V – 280V AC |
| Input Frequency | 50/60 Hz ±3 Hz (Auto Sensing) |
| Nominal Output Voltage | 230V AC |
| Output Frequency | 47 – 53 Hz |
| Battery Type | Sealed Maintenance-Free Lead Acid |
| Battery Configuration | 2 × 12V / 7Ah |
| Recharge Time | Approx. 3 Hours |
| Backup Time | ~4–16 min (load dependent) |
| Typical Backup (PC Load) | Up to 45 minutes (single PC) |
| Surge Protection | 340 Joules |

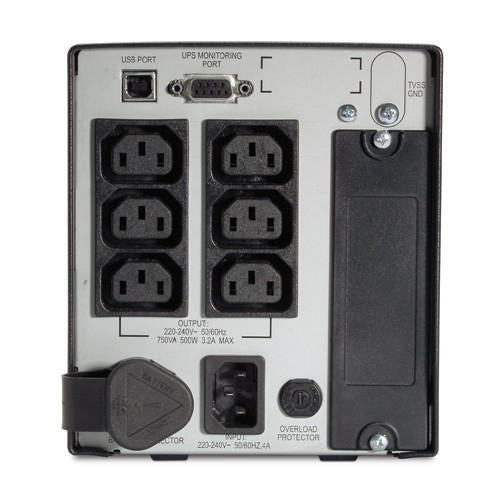

| Output Connections | IEC C13 (6 outlets) + IEC Jumpers |
| Input Connection | IEC-320 C14 |
| Interface Ports | USB, Serial (RS-232 / RJ-45) |
| Management Software | APC Power Chute |
| Indicators | LED Status Indicators |
| Audible Alarm | Yes (Battery, Overload, Fault) |
| Dimensions (H × W × D) | 157 × 137 × 361 mm |
| Weight | Approx. 13.2 kg |
| Operating Temperature | 0°C to 40°C |
| Humidity | 0 – 95% Non-condensing |
| Form Factor | Tower |
| Warranty | 2 Years |
