Description

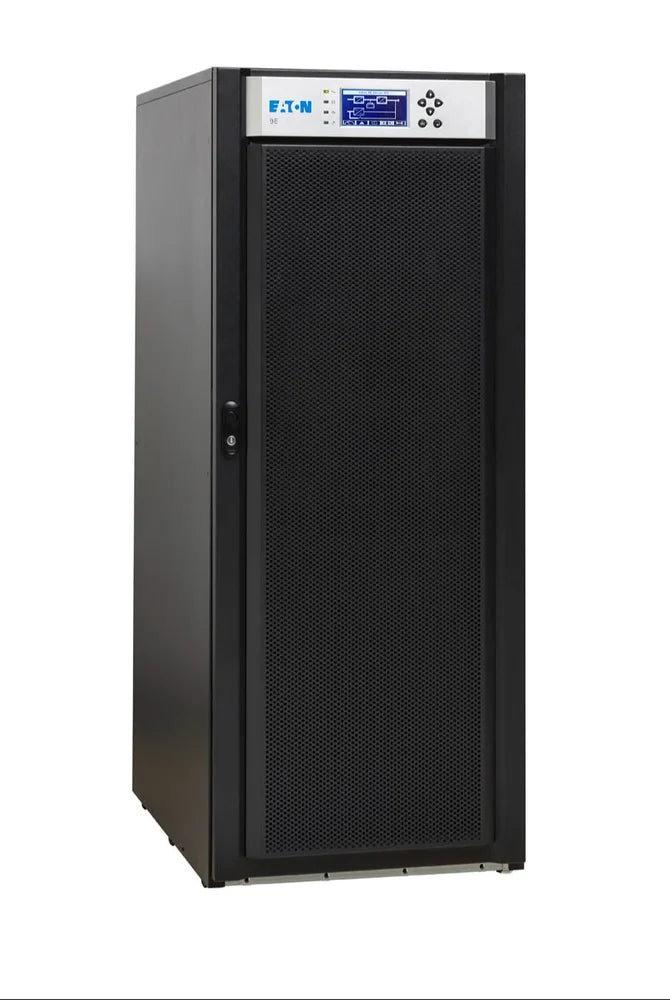

The Eaton 93E XS 40kVA UPS is a next-generation three-phase online UPS system engineered to provide continuous, clean, and reliable power for mission-critical operations. This UPS delivers high efficiency, compact design, and intelligent energy management, making it ideal for modern IT infrastructure and industrial environments.

Designed for demanding Indian power conditions, the Eaton 93E XS 40kVA ensures maximum uptime, reduced energy costs, and superior equipment protection against voltage fluctuations, outages, and power disturbances.

🔹 Overview

The Eaton 93E XS 40kVA UPS is a three-phase, double-conversion online UPS system designed to provide reliable, continuous power protection for critical loads such as IT infrastructure, commercial buildings, and industrial systems.

🔹 Key Features

 1. Online Double-Conversion Technology

• Provides continuous clean power with zero transfer time.
• Protects against voltage fluctuations, spikes, and outages.

 2. Power Rating

• Model: 40 kVA / ~36 kW output
• Suitable for medium-sized data centers and critical loads.

 3. High Efficiency

• Up to 98% efficiency (high-efficiency mode)
• Around 92% in double-conversion mode
• Reduces energy consumption and operating cost

 4. Internal Battery System

• Built-in maintenance-free VRLA batteries
• Typical runtime:
• 10–12 minutes at full load (40 kVA)
• Can be extended with external battery cabinets (EBC)

 5. Compact Tower Design

• Space-saving footprint (up to 35% less space than similar UPS)
• Ideal for installations with limited floor space.

 6. Advanced Reliability

• Hot Sync® technology allows parallel operation of multiple UPS units
• Eliminates single point of failure and increases redundancy.

 7. Smart Monitoring & Control

• Graphical LCD display for status and control
• Communication options:
• RS-232 / USB / SNMP
• Remote monitoring via network software.

 8. Flexible Input/Output

• 3-phase input/output (typically 400/415V systems)
• Wide voltage tolerance (±20% input range

🔹 Technical Highlights (40 kVA Model)

• Topology                        :   Online double conversion
• Power factor                  :  ~0.9
• Input PF                          :  >0.99
• THD                                :   ≤5%
• Efficiency                       :    Up to 98%
• Frequency                      :   50/60 Hz
• Noise level                     :   ~62–65 dB
• Operating temperature  : 0°C to 30–40°C

🔹 Applications

• Data centers
• IT/server rooms
• Hospitals
• Commercial buildings
• Industrial automation systems

🔹 Advantages

• ✔ High efficiency → lower electricity cost
• ✔ Compact footprint
• ✔ Scalable (parallel capability)
• ✔ Reliable for critical loads
• ✔ Flexible battery backup options


🔹 Technical Specifications

• Capacity: 40kVA / 36kW
• UPS Type: Online Double Conversion (VFI)
• Input Voltage Range: 304V – 478V AC (3 Phase)
• Output Voltage: 380/400/415V AC
• Input Power Factor: ≥ 0.99
• Output Power Factor: 0.9
• Frequency: 50/60 Hz Auto-Sensing
• Efficiency: Up to 96%
• Battery Type: SMF / VRLA / Tubular Batteries
• Battery Voltage: Typically 360V DC (configurable)
• Operating Temperature: 0°C to 40°C
• Protection: Overload, short circuit, surge, deep discharge

🔹 Key Features

• True Online Double Conversion (VFI Technology)
  Guarantees zero transfer time and complete isolation from power disturbances.
• 40kVA / 36kW Output Capacity
  Supports high-density loads in data centers and industrial applications.
• High Efficiency up to 96%
  Minimizes power losses and reduces operating costs.
• Compact XS Footprint Design
  Space-saving vertical architecture for easy installation.
• Wide Input Voltage Range
  Ensures stable performance even in unstable grid conditions.
• Advanced DSP Control System
  Provides accurate voltage and frequency regulation.
• Flexible Battery Configuration (Internal / External)
  Customizable backup duration based on business needs.
• Smart LCD Display & Communication Ports
  Enables real-time monitoring, alerts, and remote management.
• Generator Compatible
  Seamless integration with diesel generators for uninterrupted operations.

Warranty	2 years
Click on Product Data sheet



🔹 Why Choose Eaton 93E XS 40kVA UPS?

The Eaton 93E XS Series stands out with its high efficiency, compact design, and advanced protection features, ensuring maximum uptime and operational reliability. It is a cost-effective solution for businesses that require scalable power backup, energy efficiency, and long-term performance. Eaton 93E XS 40kVA UPS Mumbai, Eaton 40kVA Online UPS 3 Phase Thane, Industrial UPS 40kVA Navi Mumbai, Data Center UPS India Panvel, Eaton UPS Dealer Mumbai, Vasai and Virar High Efficiency UPS System, Commercial UPS Solution India, UPS for Hospital Equipment all over India. Eaton 93E XS 40kVA UPS India.
