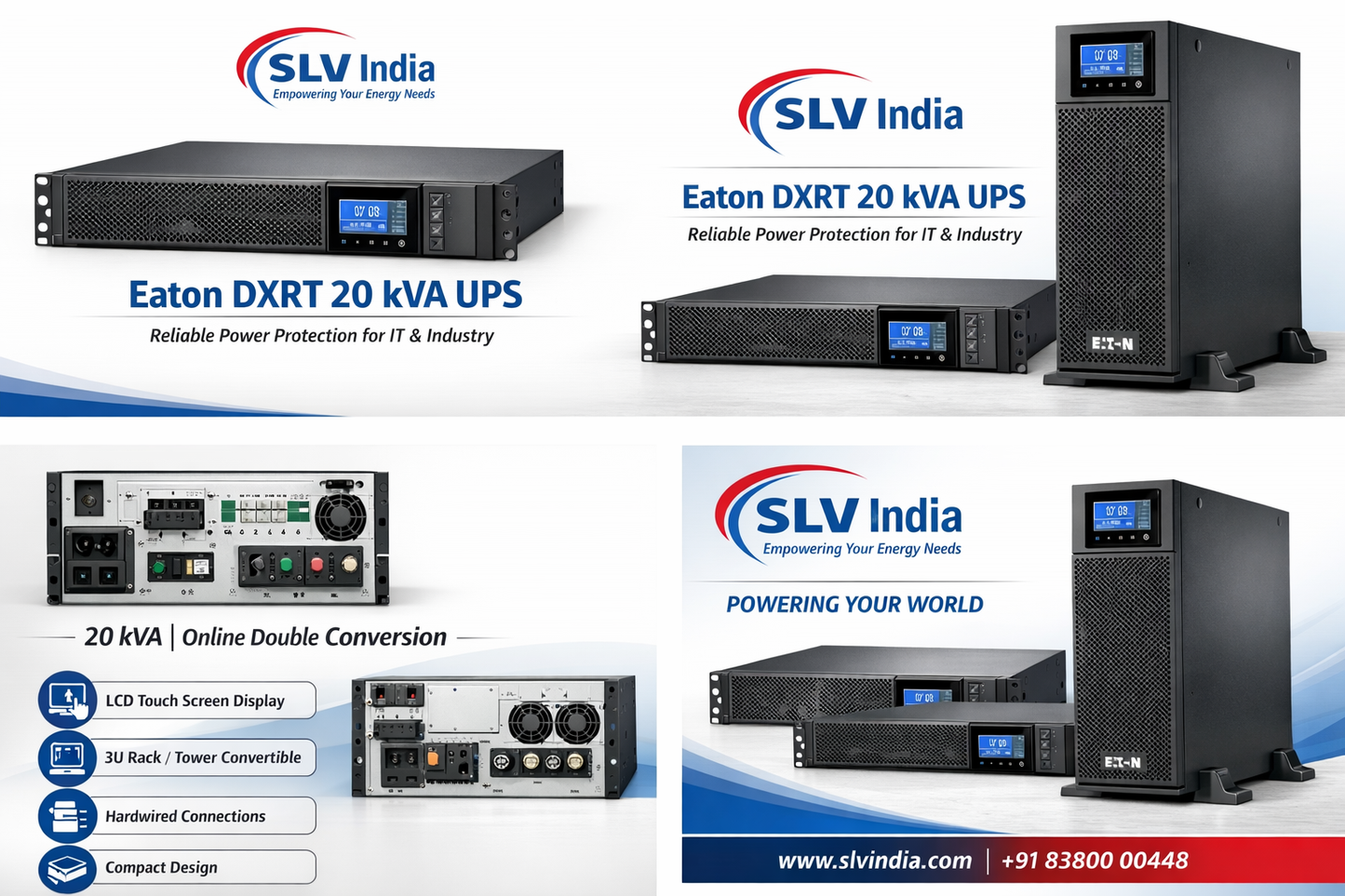

Eaton Online Rack and Tower Convertible External Battery DXRT UPS 20KVA

Value Proposition:

The Eaton DXRT UPS 20KVA is a high-performance, online double-conversion uninterruptible power supply designed to deliver reliable and continuous power protection for critical applications. It is ideal for data centers, Industrial Automation Systems, Healthcare, Hospitals (Medical) equipments, and Large IT Infrastructures where downtime is not an option. This UPS provides true online double-conversion technology, ensuring a consistent and clean power supply by isolating connected equipment from power disturbances such as outages, voltage fluctuations, spikes, and electrical noise. With a capacity of 20KVA, it supports heavy loads while maintaining stable performance. Additionally, the UPS includes features such as automatic bypass, overload protection, and compatibility with generators, making it a dependable solution for mission-critical environments. Its compact footprint and flexible installation options further enhance its suitability for modern infrastructure needs. unity power factor (kVA = kW), high efficiency up to 98.8%, and flexible 3-phase configurations, ensuring reliable and continuous power protection.

Technical Specifications

🔹 General

• Capacity: 20 kVA / 20 kW
• UPS Type: Online Double Conversion
• Form Factor: Rack / Tower Convertible (3U)
• Phase Configuration: 1:1, 3:1, 3:3 (Flexible)

🔹 Input Specifications

• Rated Voltage: 380 / 400 / 415 VAC
• Voltage Range: 100 – 300 VAC
• Frequency Range: 40 – 70 Hz
• Input Power Factor: ≥ 0.99
• THDi: < 3%


🔹 Output Specifications

• Output Voltage: 220 / 230 / 240 VAC
• Output Power Factor: 1.0 (Unity)
• Voltage Regulation: ±1%
• Output Frequency: 50 / 60 Hz
• Waveform: Pure Sine Wave

• THD: < 1% (Linear Load)

🔹 Battery Specifications

• Battery Type: External Battery System
• Battery Voltage: 384 – 480 VDC
• Battery Configuration: 32–40 Batteries (Adjustable)
• Charging Current: 1–13A Adjustable

• Battery Management: Advanced ABM Technology

🔹 Efficiency & Performance

• Online Mode Efficiency: Up to 96%
• ECO Mode Efficiency: Up to 98.8%
• Transfer Time: 0 ms (No interruption)
• Overload Capacity:
  • 105%–125% → 10 min
  • 125%–150% → 30 sec
• Parallel Capability: Up to 3 units (2+1 redundancy)

🔹 Design & Build

• Height: 3U Rack
• Depth: < 600 mm (Compact design)
• Display: Color LCD Touchscreen (Auto-rotating)
• Cooling: Intelligent fan cooling
• Connections: Hardwired input/output


🔹 Communication & Interface

• USB / RS232
• SNMP Card (Optional)
• Dry Contact / EPO
• Compatible with virtualization (VMware, Hyper-V)


🔹 Environmental Specifications

• Operating Temperature: 0°C to 50°C
• Humidity: 0–95% (Non-condensing)
• Altitude: Up to 4000 meters


🚀 Key Features

• 20kVA Online Double Conversion UPS
• Unity Power Factor UPS (kW = kVA)
• Rack Mount & Tower Convertible UPS
• High Efficiency UPS (Up to 98.8%)
• Parallel Redundant UPS System
• Industrial & Data Center UPS

Key Features & usages :-

• 20kVA Online Double Conversion UPS
• Unity Power Factor UPS (kW = kVA)
• Rack Mount & Tower Convertible UPS
• High Efficiency UPS (Up to 98.8%)
• Parallel Redundant UPS System
• Industrial & Data Center UPS

Key Applications of Usage

• Data Centers & Server Rooms
• Hospitals & Medical Equipment
• Industrial Automation
• Telecom & Networking
• Banking & Financial Systems

Model No	DXRT UPS 20 KVA
Model Type	External Model
Battery Type	Long backup
Internal Battery	Not available
Charging capability	0~13A adjust
Usage	IT Infrastructure, Medical Equipment's, and Networking Devices and many more
Input Power Factor	>0.995
Power Factor	1.0
Wide input voltage	160V~300V
Efficiency	96%
Warranty	2 years
