Eaton online Rack and Tower Eaton 9SX 2000i Rack2U IN1

Value Proposition

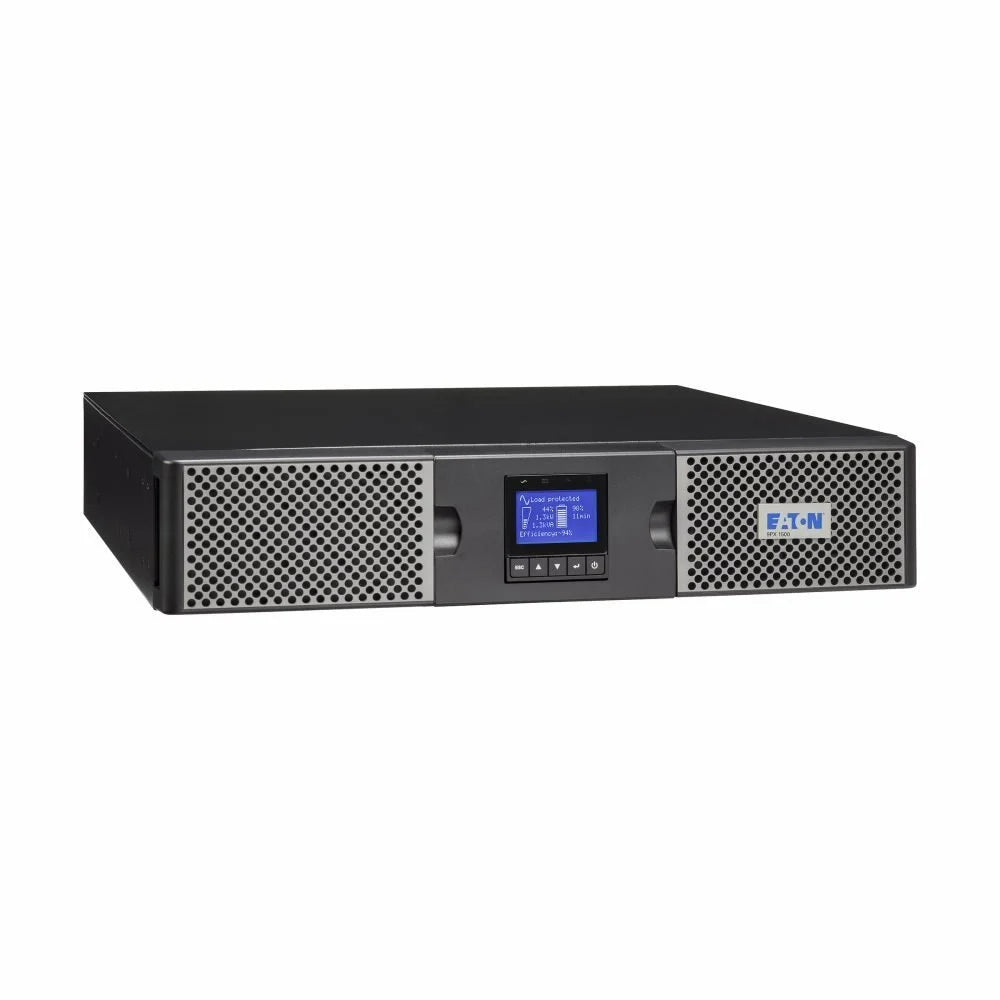

The Eaton 9SX 2000i Rack2U is a rack-mounted (2U) online double-conversion UPS that provides continuous, clean, and reliable power to connected devices. It protects against power disturbances such as outages, voltage fluctuations, surges, and frequency variations—ensuring uninterrupted operation of sensitive equipment.

The Eaton 9SX 2000i Rack2U UPS is a premium online double conversion UPS designed to deliver continuous, clean, and reliable power protection for critical IT and networking applications. With its compact 2U rack-mount design, high efficiency, and advanced management capabilities, this UPS is ideal for modern server rooms and edge infrastructure.

Built for Indian power conditions, the Eaton 9SX 2000i ensures zero downtime, stable voltage output, and superior protection against power disturbances such as outages, spikes, and fluctuations.

🔹Key Features

• Online double-conversion technology for zero transfer time and maximum protection
• Rack form factor (2U, 19-inch) for easy integration into server racks
• Pure sine wave output for sensitive electronics
• Advanced Battery Management (ABM) to extend battery life
• Hot-swappable batteries for easy maintenance without shutdown
• LCD display for real-time monitoring and configuration
• Energy-efficient operation (up to ~97% in eco mode)
• Expandable runtime with optional external battery modules.
• True Online Double Conversion Technology
  Zero transfer time ensures uninterrupted power supply to critical equipment.
• 2000VA / 1800W Output Capacity
  Ideal for small to medium IT loads, servers, and networking devices.
• Compact Rack-Mount Design (2U)
  Saves valuable rack space and fits seamlessly into standard server racks.
• High Efficiency up to 93%
  Reduces energy consumption and operating costs.
• Pure Sine Wave Output
  Ensures compatibility with sensitive electronics.
• LCD Display with Real-Time Monitoring
  Displays load status, battery health, and system diagnostics.
• Extended Runtime with External Battery Modules (EBM)
  Flexible backup duration as per business needs.
• Advanced Connectivity Options
  Supports USB, RS232, and SNMP for remote monitoring.
• Hot-Swappable Batteries
  Allows maintenance without shutting down connected equipment.
•

🔹Technical Highlights

• Input voltage: 200–276 V (wide tolerance)
• Output: 230 V AC, ±2% regulation
• Output connections: 8 × IEC C13
• Interfaces: USB, RS232, relay contacts
• Battery type: Sealed lead-acid, hot-swappable
• Capacity: 2000VA / 1800W
• UPS Type: Online Double Conversion
• Input Voltage Range: 190V – 276V AC
• Output Voltage: 200/208/220/230/240V AC
• Input Power Factor: ≥ 0.99
• Output Power Factor: 0.9
• Frequency: 50/60 Hz Auto-Sensing
• Efficiency: Up to 93%
• Battery Type: Internal VRLA (Expandable with EBM)
• Form Factor: Rack Mount (2U)
• Operating Temperature: 0°C to 40°C
• Noise Level: < 45 dB
• Typical backup time:
  • ~6–7 minutes at full load
  • ~17–20 minutes at half load

🔹 Benefits

• Ensures zero downtime during power interruptions
• Protects equipment from damage and data loss
• Provides stable voltage and frequency output
• Enables remote management and monitoring
• Reduces operational cost with high efficiency.

🔹Summary

The Eaton 9SX 2000i Rack2U IN1 is a reliable, enterprise-grade UPS solution that combines strong power protection, scalability, and advanced battery technology—making it well-suited for mission-critical IT environments.

🔹 Applications

The Eaton 9SX 2000i Rack2U UPS is ideal for:

• Server Rooms & Small Data Centers
• IT & Networking Equipment
• CCTV & Surveillance Systems
• Telecom Applications
• Banking & Financial Systems
• Edge Computing & Retail IT



Click Here on product data sheet :-



🔹 Why Choose Eaton 9SX 2000i UPS?

The Eaton 9SX 2000i stands out for its compact design, high efficiency, and advanced protection features. It is a reliable solution for businesses requiring continuous uptime, scalable backup, and intelligent monitoring. With extended runtime capability and easy maintenance, it ensures maximum equipment protection and business continuity. Eaton 9SX 2000i UPS, Rack Mount UPS 2kVA, Online UPS 2000VA Mumbai, Eaton Rack UPS 2U, UPS for Server Rack Mumbai, Thane, Navi Mumbai, Panvel, BKC, Andheri. Dadar, Data Center UPS India, Eaton UPS Dealer Mumbai, Thane, Navi Mumbai, Panvel, BKC, Andheri. Dadar, Small Business UPS Solution, Network UPS System.
