SKU:SRV10KUXI-IN
🔹 PRODUCT DESCRIPTION

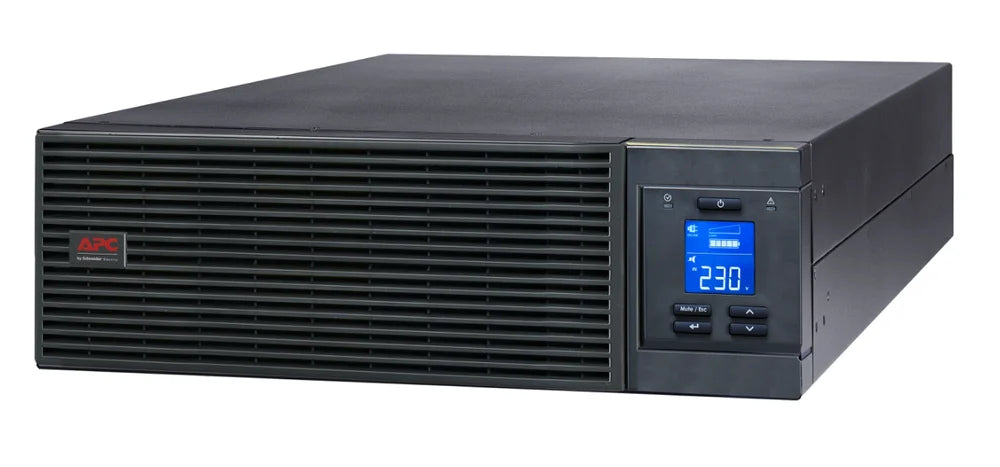

The APC Easy UPS SRV10KUXI-IN is a high-performance 10 kVA / 10 kW online double-conversion UPS designed to deliver reliable and clean power protection for critical IT, industrial, and networking environments. It is part of the APC Easy UPS On-Line series and is widely used for servers, data centers, telecom systems, and sensitive electronic equipment.
🔹BATTERY & RUTINE
- Works with external sealed lead-acid battery banks
- Supports scalable runtime depending on battery configuration
- Intelligent charging system for battery health optimization
- Typical backup time varies based on load and battery size
🔹 PROTECHTION & SAFTEY
- Overload, short circuit, and surge protection
- Automatic internal bypass for maintenance and fault conditions
- Built-in diagnostics and self-test functions
- Compliant with industrial safety and EMC standard
🔹 CONNECTIVITY & MANGEMENT
- USB and RS-232 communication ports
- Smart monitoring support via Power management software
- Remote shutdown and event logging capabilities
- Optional network management card support (SmartSlot)
🔹 TECHNICAL SPECIFICATION
| Parameter | Specification |
|---|---|
| Product Model | SRV10KUXI-IN |
| Brand | APC by Schneider Electric |
| UPS Type | Online Double Conversion UPS |
| Capacity | 10 kVA / 10 kW |
| Phase | 1:1 (Single Phase Input / Single Phase Output) |
| Input Voltage Range | 110 – 300 VAC (wide input range) |
| Input Frequency | 40 – 70 Hz (auto sensing) |
| Output Voltage | 220 / 230 / 240 VAC (configurable) |
| Output Frequency | 50/60 Hz ±0.1 Hz |
| Output Waveform | Pure Sine Wave |
| Power Factor | 1.0 |
| Crest Factor | 3:1 |
| Efficiency (Online Mode) | Up to 94% |
| Battery Type | External Battery Bank (SMF / VRLA) |
| Battery Voltage | Typically 192V DC (external battery dependent) |
| Recharge Time | 4–6 hours to 90% (depends on battery bank) |
| Transfer Time | 0 ms (online mode) |
| Display Type | LCD Display with status indicators |
| Communication Ports | USB, RS-232 |
| Optional Communication | SNMP Card Support |
| Overload Capacity | 105%–150% (short duration support) |
| Protection Features | Overload, short circuit, over-temperature, battery deep discharge protection |
| Cooling System | Intelligent fan-based cooling |
| Operating Temperature | 0°C to 40°C |
| Relative Humidity | 0% – 95% (non-condensing) |
| Noise Level | < 55 dB |
| Dimensions (W x D x H) | Approx. 250 x 826 x 718 mm |
| Weight | Approx. 80–90 kg (without batteries) |
| Installation Type | Tower |
| Standards Compliance | IEC / CE / BIS compliant |
