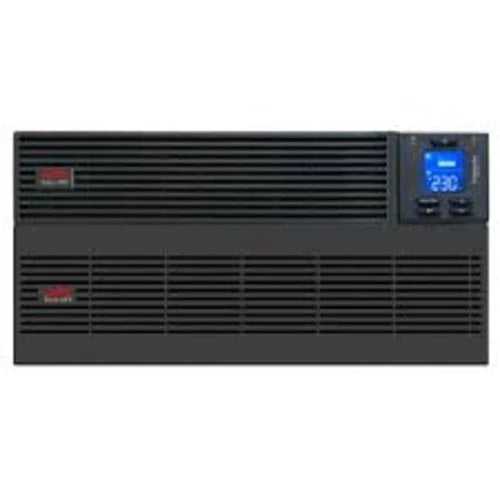

SRV120RLBP2-9A
SRV120RLBP2-9A
Regular price
Rs. 0.00
Regular price
Sale price
Rs. 0.00
Unit price
/
per
Taxes included.
SKU:SRV120RLBP2-9A
🔹 PRODUCT DESCRIPTION
The SRV120RLBP2-9A is a rack-mounted 120V battery module that provides extended backup power when connected to compatible APC UPS systems. It is mainly used in data centers, server rooms, and critical power applications where longer backup time is required during power failures.
🔹 KEY FEATURES
- Type: External Battery Pack (EBP)
- Voltage: ±120V DC
- Compatibility: Works with SRV10KUXI-IN, SRV15KUXI-IN, SRV20KUXI-IN UPS systems
- Form Factor: Rack-mount (3U)
- Battery Type: Sealed lead-acid (maintenance-free)
- Purpose: Extends UPS runtime during long power outages
- Application: Data centers, servers, network infrastructure
🔹 INSTALLATION & USAGE
- Installed in rack-mounted configuration, usually below the UPS
- Connects via dedicated battery cable
- Supports parallel connection of multiple battery packs for higher backup time
- Designed for continuous power applications
🔹 PERPOSE & BENIFITS
This battery pack is used when a standard UPS battery is not enough. It significantly increases backup runtime, ensuring critical systems like servers, routers, and industrial equipment continue running during extended outages.
🔹 TECHNICAL SPECIFICATION
| Parameter | Specification |
|---|---|
| Model Name | SRV120RLBP2-9A |
| Product Type | External Battery Pack for UPS |
| Brand | APC by Schneider Electric |
| Series Compatibility | Easy UPS On-Line SRV (15 kVA / 20 kVA) |
| UPS Compatibility | SRV10KUXI-IN, SRV15KUXI-IN, SRV20KUXI-IN |
| Battery Type | Sealed Maintenance-Free VRLA (Valve Regulated Lead Acid) |
| Battery Voltage | ±120 V DC |
| Battery Capacity | 12 V, 9 Ah battery blocks |
| Configuration | Rack-mounted external battery system |
| Rack Size | 3U |
| Form Factor | Rack Mount (with kit) |
| Weight (Net) | ~64 kg |
| Weight (with packaging) | ~80 kg |
| Dimensions (H × W × D) | 131 × 438 × 686 mm |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -15 to 40/45 °C |
| Relative Humidity | 0% – 95% (non-condensing) |
| Operating Altitude | 0 – 3,000 m |
| Storage Altitude | 0 – 15,000 m |
| Protection Class | IP20 |
| Battery Backup Function | Extended runtime support for UPS |
| Installation Type | Rack mount (bottom placement recommended) |
| Cables Included | Battery connection cable (~500 mm) |
| Mounting Accessories | Rack brackets, stabilizer brackets included |
| Hot-Swappable | Yes (supports battery replacement with UPS running) |
| Typical Application | Data centers, IT infrastructure, server rooms |
