SRV240RBP-9A
SRV240RBP-9A
Regular price
Rs. 0.00
Regular price
Sale price
Rs. 0.00
Unit price
/
per
Taxes included.
SKU:SRV240RBP-9A
🔹 PRODUCT DESCRIPTION

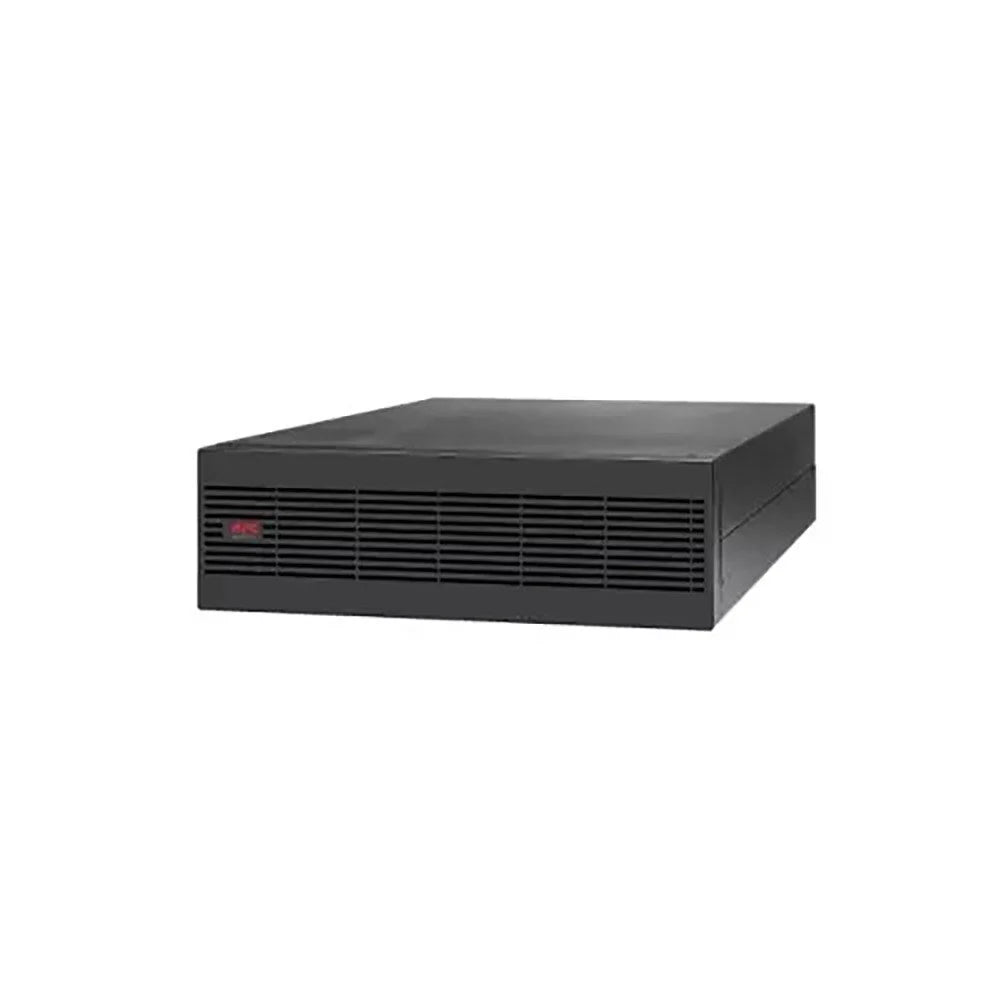

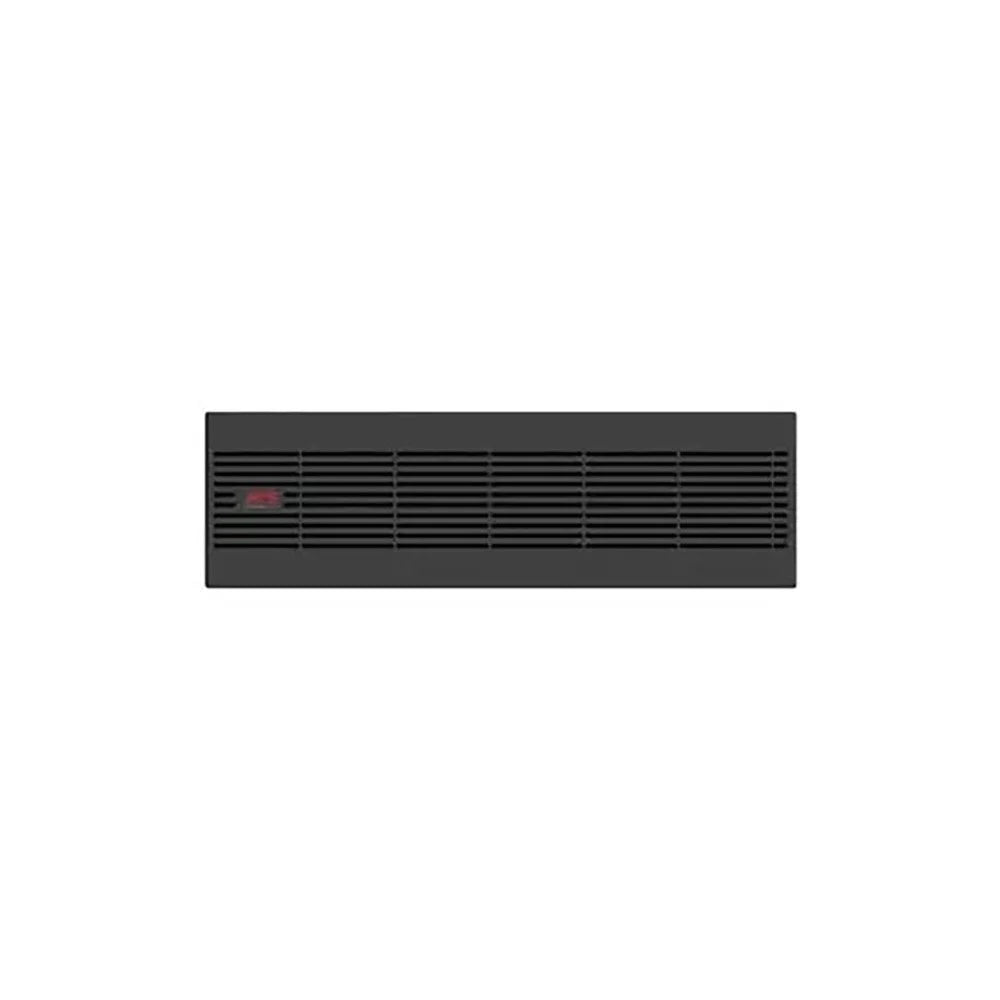

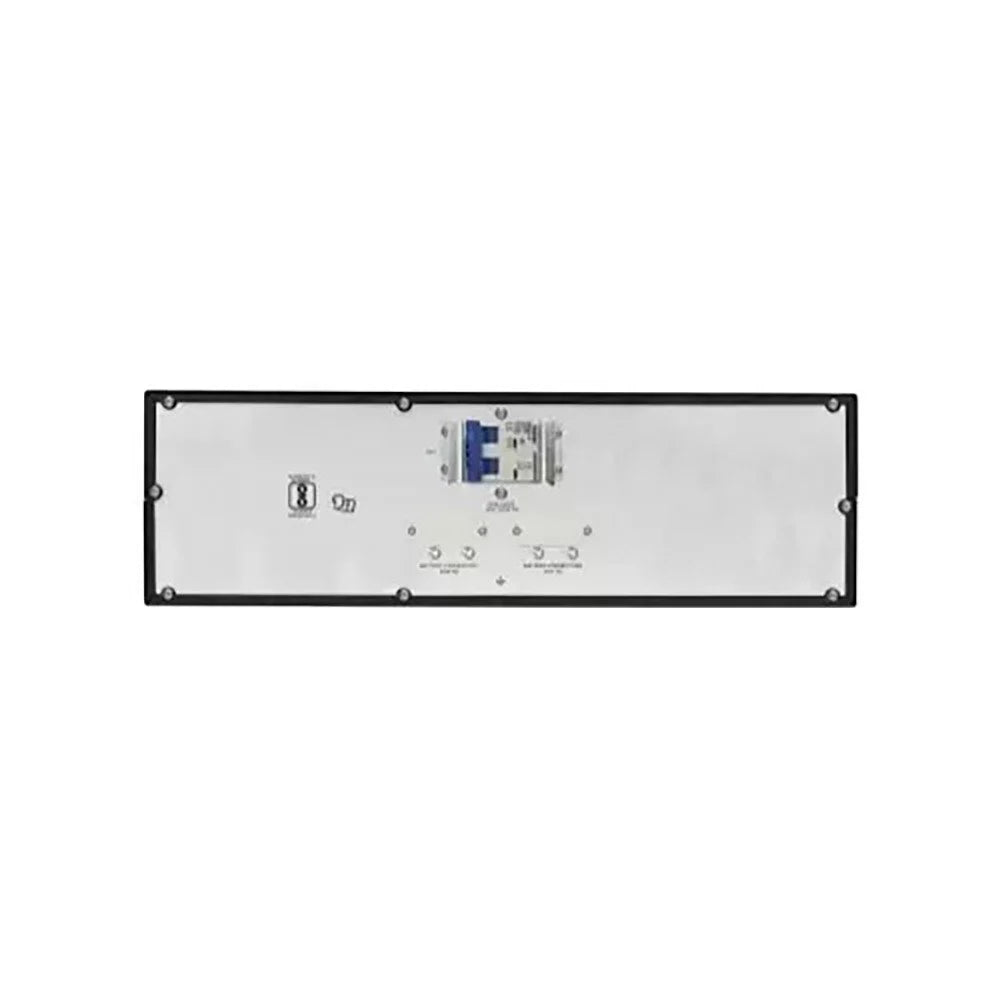

The APC SRV240RBP-9A is an external battery pack designed for APC Easy UPS Online SRV series systems. It is used to extend backup runtime for critical power applications such as servers, IT networks, and industrial equipment. This model is compatible with 5kVA, 6kVA, and 10kVA UPS systems, making it suitable for medium to large-scale power backup setups.
🔹 KEY FEATURES
- Battery Type: Sealed Maintenance Free (VRLA) lead-acid battery
- Battery Voltage: 240V DC
- Energy Capacity: 2160 VAh
- Design: 3U rack-mount battery system
- Usage: Extended runtime solution for UPS systems
- Build: Heavy-duty black metal enclosure.
🔹 PHYSCIAL CHERCTRISTICS
- Compact rack-mounted 3U design
- Approx. size: 438 mm (W) × 133 mm (H) × 606 mm (D)
- Strong metal housing for data center environments
- Designed for easy integration with UPS racks
🔹 TECHNICAL SPECIFICATION
| Parameter | Specification |
|---|---|
| Product Name | APC Easy UPS On-Line SRV Battery Pack |
| Model Number | SRV240RBP-9A |
| Product Type | External Battery Pack (UPS Battery System) |
| Application | Extended runtime for 5/6/10 kVA UPS systems |
| Battery Type | Sealed Lead Acid (VRLA) |
| Battery Voltage | 240 V DC |
| Energy Capacity | 2160 VAh |
| Battery Configuration | 20 battery blocks per string |
| Mounting Type | Rack Mount (with kit) |
| Rack Height | 3U |
| Colour | Black |
| Net Weight | ~60–63 kg |
| Dimensions (H × W × D) | 13.3 cm × 43.8 cm × 60.6 cm |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -15 °C to 40 °C |
| Relative Humidity | 0–95% (non-condensing) |
| Operating Altitude | 0–3000 m |
| Included Accessories | Battery cable, rack mounting brackets, documentation CD, user manual |
| Certifications | CE, UKCA, EAC, RoHS, EN/IEC 62040-1 |
| Expected Battery Life | 3–5 years (typical) |
| Warranty | 2 years (manufacturer standard) |
