SUA2200I-IND
SUA2200I-IND
SKU:SUA2200I-IND
✅ PRODUCT OVERVIEW

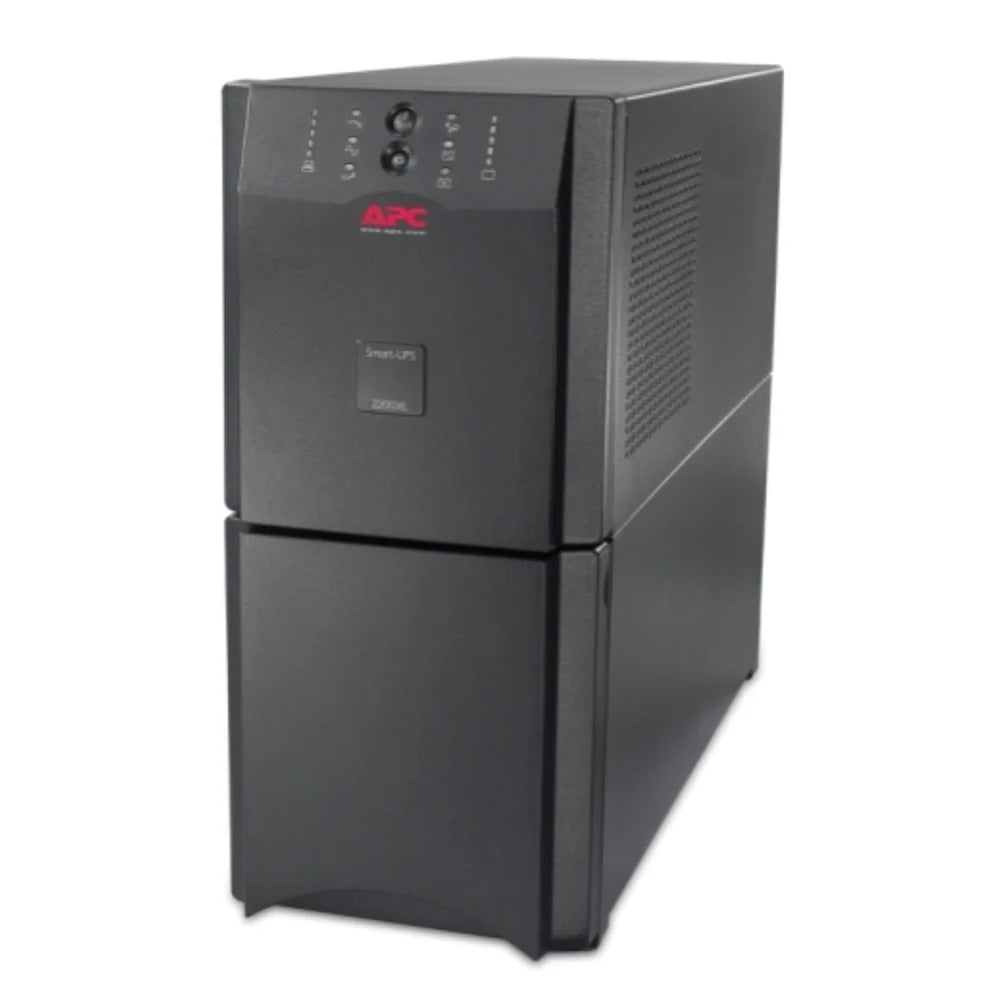

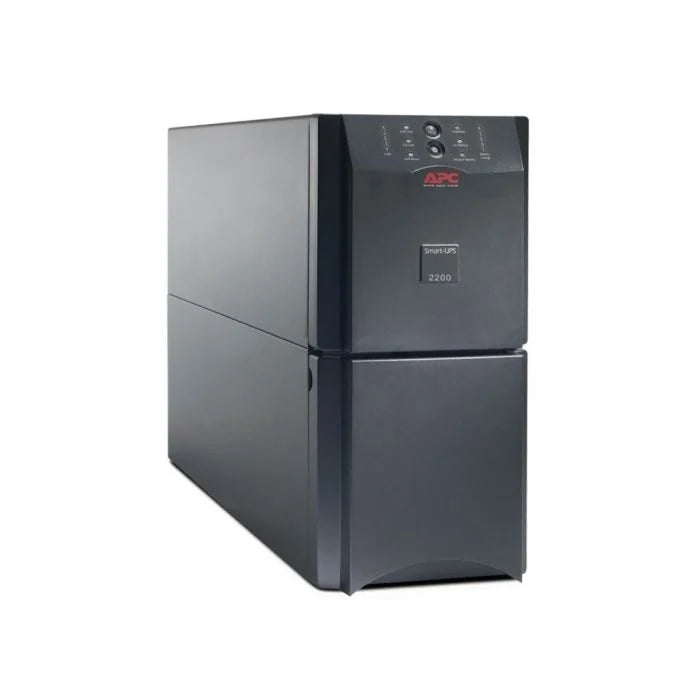

The APC SUA2200I-IND Smart UPS is a reliable and high-performance power backup solution designed for critical IT infrastructure and sensitive electronic equipment. Built with advanced line-interactive technology, this UPS ensures uninterrupted power supply, protects against voltage fluctuations, and delivers consistent performance for servers, networking devices, and business systems. With a power capacity of 2200VA / 1980 Watts, the SUA2200I-IND provides efficient power conditioning and battery backup, making it ideal for small to medium-sized data centers, offices, and industrial applications. It delivers a pure sine wave output, ensuring compatibility with modern equipment using active PFC power supplies.
✅ KEY FEATURES
-
Line-Interactive Technology
Automatically regulates voltage fluctuations without switching to battery, increasing efficiency and battery life. -
High Power Capacity (2200VA / 1980W)
Suitable for servers, networking equipment, POS systems, and critical loads. -
Pure Sine Wave Output
Ensures safe and stable power for sensitive and high-end devices. -
Inbuilt Battery System
Equipped with internal batteries for immediate backup support and easy installation. -
USB & Serial Connectivity
Enables remote monitoring, automatic shutdown, and power management through software.
✅ APPLLICATION
- Servers and Data Centers
- Networking Devices (Routers, Switches, Hubs)
- Point-of-Sale (POS) Systems
- Workstations and IT Infrastructure
- Industrial & Commercial Equipment
✅ TECHNICAL SEPCIFICATION
| Parameter | Details |
|---|---|
| Model | SUA2200I-IND |
| Capacity | 2200 VA / 1980 Watts |
| UPS Topology | Line-Interactive |
| Input Voltage Range | 160V – 286V (Typical) |
| Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) |
| Output Voltage | 230V |
| Output Frequency | 50/60 Hz ± 3 Hz |
| Waveform Type | Pure Sine Wave |
| Transfer Time | 2–4 ms (Typical) |
| Battery Type | Sealed Lead Acid (VRLA) |
| Battery Configuration | 4 × 12V Internal Batteries |
| Typical Backup Time | 10–15 Minutes (Load Dependent) |
| Recharge Time | 3–5 Hours to 90% Capacity |
| Output Connections | IEC C13 & C19 |
| Interface Ports | USB, Serial (RS-232) |
| Display | LED Indicators |
| Audible Alarm | Yes |
| Surge Protection | Yes |
| Efficiency | Up to 98% (Line Mode) |
| Operating Temperature | 0°C to 40°C |
| Noise Level | < 45 dB |
| Form Factor | Tower |
| Dimensions (H×W×D) | Approx. 435 × 197 × 544 mm |
| Weight | Approx. 50 kg |
| Warranty | 2 Years (Standard APC Warranty) |
