SUA2200UXI
SUA2200UXI
SKU:SUA2200UXI
✔ PRODUCT OVERVIEW

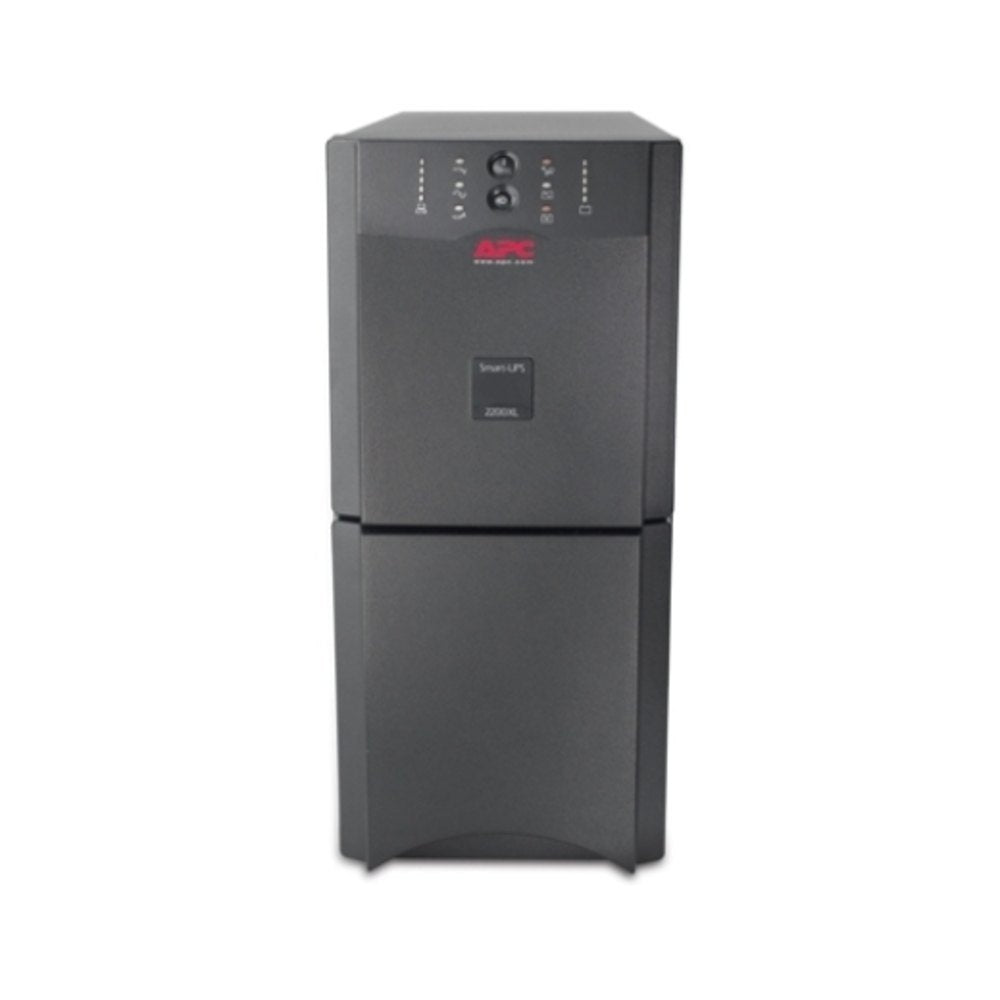

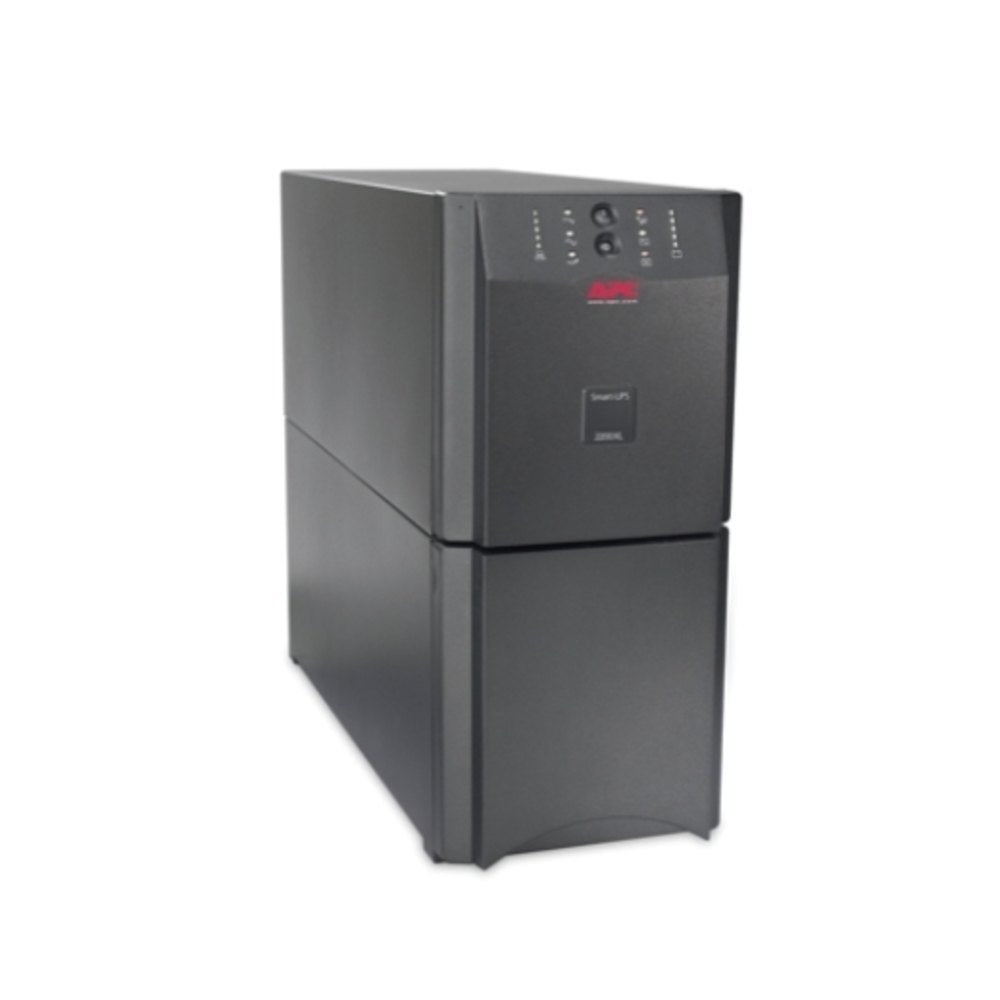

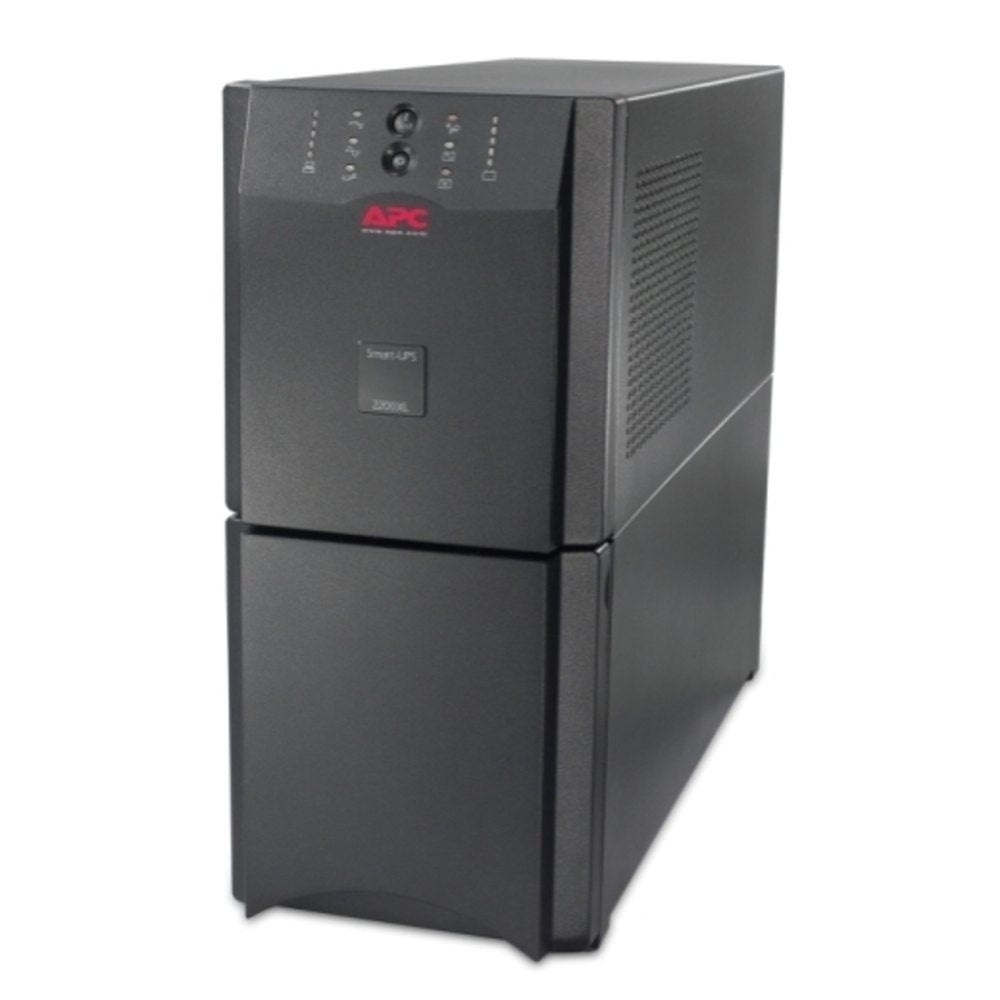

The APC SUA2200UXI Smart-UPS XL 2200VA is a high-performance line-interactive UPS system designed to deliver reliable and uninterrupted power protection for critical IT infrastructure. Built by Schneider Electric (APC), this UPS ensures clean, stable power for servers, networking devices, storage systems, and industrial applications. With a power capacity of 2200VA / 1980W, the SUA2200UXI provides advanced protection against power disturbances such as outages, voltage fluctuations, surges, and spikes. Its pure sine wave output ensures compatibility with sensitive electronic equipment and mission-critical loads.
✔ KEY FEATURES
🔌 2200VA / 1980W Capacity
High power backup suitable for servers, networking, and enterprise IT equipment.
⚡ Line-Interactive Technology
Ensures voltage regulation without using batteries, increasing efficiency and battery life.
🔋 External Battery Support (XL Series)
Expandable runtime with external battery packs—ideal for long backup requirements.
🔄 Automatic Voltage Regulation (AVR)
Corrects low/high voltage conditions without battery usage, enhancing reliability.
📊 LED Status Indicators
Clear visual indicators for power status:
✔ On Line
✔ On Battery
✔ Replace Battery
✔ Overload
🔔 Audible Alarms
Alerts for battery mode, overload, and low battery conditions.
🔌 Multiple Output Connections
Supports IEC C13 & C19 outlets for diverse IT equipment connectivity.
✔ APPLICATION
💻 Servers & Data Centers
🌐 Networking Equipment (Routers, Switches)
🏢 Offices & IT Infrastructure
💳 POS Systems
🏭 Industrial Automation Systems
✔ TECHNICAL SPECIFICATION
| Parameter | Specification |
|---|---|
| Model | APC Smart-UPS XL SUA2200UXI |
| UPS Type / Topology | Line Interactive |
| Power Capacity | 2200 VA / 1980 Watts |
| Input Voltage | 230V AC |
| Input Frequency | 50/60 Hz ±5% (auto sensing) |
| Input Voltage Range | 160–286V (typical), adjustable 151–302V |
| Input Connection | IEC 320 C20 |
| Output Voltage | 230V AC (configurable 220/230/240V) |
| Output Frequency | 47–53 Hz (50 Hz), 57–63 Hz (60 Hz) |
| Output Waveform | Pure Sine Wave |
| Output Power Connections | 8 × IEC C13, 1 × IEC C19, 2 × jumpers |
| Efficiency | Up to ~95% at full load |
| Output Voltage Distortion | < 5% at full load |
| Transfer Time | ~2 ms typical |
| Battery Type | External battery system (no internal battery) |
| Backup Time | Depends on external battery configuration |
| Battery Features | Hot-swappable, scalable runtime |
| Communication Ports | USB & Serial (RS-232) |
| Display Panel | LED status indicators |
| Audible Alarms | On battery, low battery, overload alerts |
| Operating Temperature | 0°C to 40°C |
| Humidity Range | 0–95% non-condensing |
| Dimensions (H×W×D) | Approx. 432 × 196 × 544 mm |
| Weight | ~28–30 kg |
| Warranty | 2 Years |
