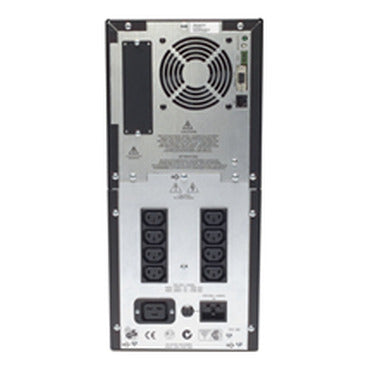

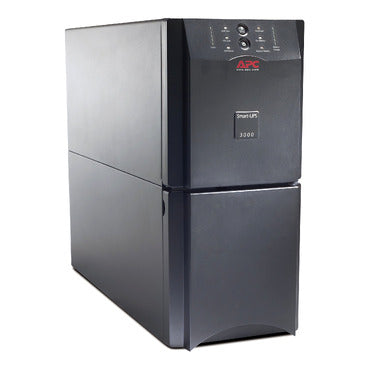

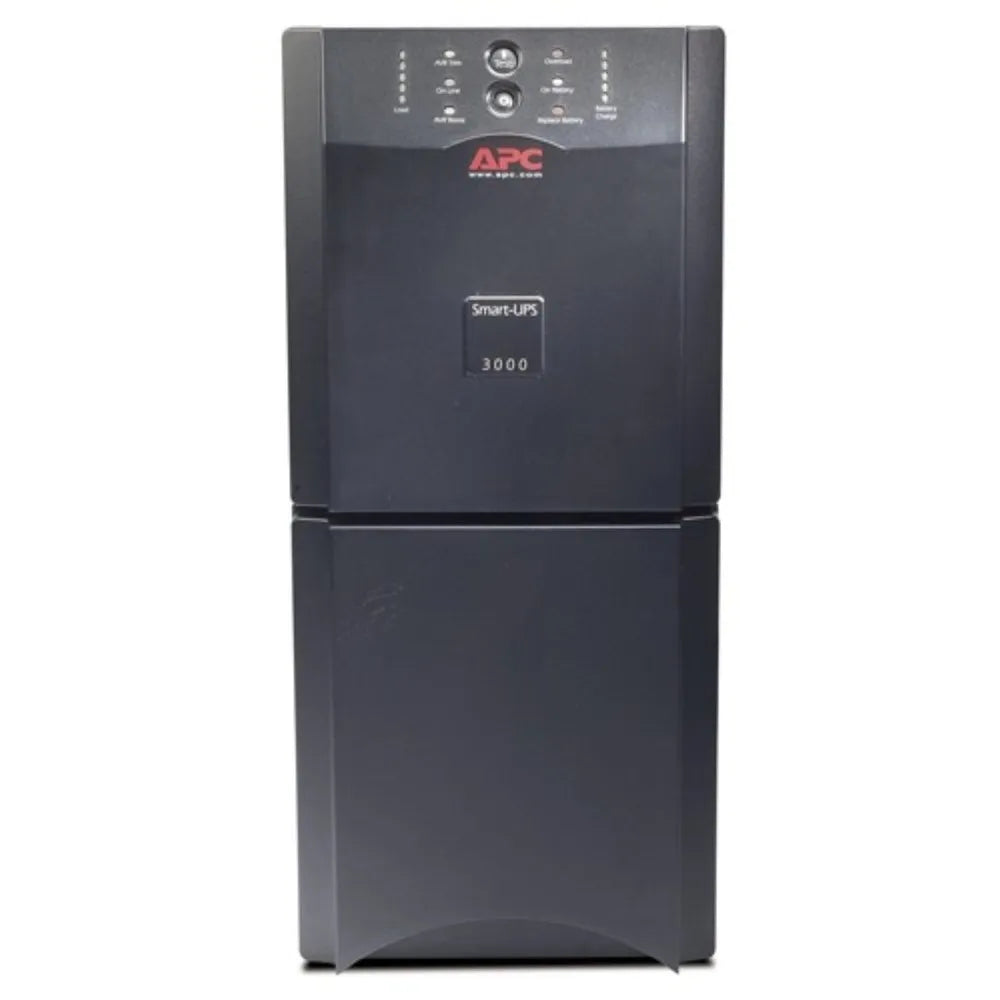

SUA3000I-IND
SUA3000I-IND
SKU:SUA3000I-IND
✅ PRODUCT OVERVIEW
The APC SUA3000I-IND is a high-performance 3000VA / 2.7kW line-interactive UPS designed to deliver reliable and efficient power protection for critical IT infrastructure and electronic equipment. Built with APC’s proven Smart-UPS technology, it ensures uninterrupted operation during power outages, voltage fluctuations, and electrical disturbances, making it ideal for servers, networking devices, data centers, and industrial applications. This UPS features pure sine wave output, ensuring compatibility with sensitive electronic equipment such as servers, storage systems, routers, and telecom devices. Its Automatic Voltage Regulation (AVR) technology stabilizes input voltage without using battery power, thereby extending battery life and improving overall efficiency.
✅ KEY FEATURES
- Intelligent Battery Management: Uses precision charging to maximise battery performance, reliability, and life.
- Automatic Voltage Regulation (AVR): The "Boost and Trim" feature corrects low and high voltage conditions without depleting the battery.
- Management Connectivity: Includes USB and RS-232 serial ports, plus a Smart Slot for adding optional network management cards.
- User Interface: Features a LED status display for "On Line," "On Battery," "Replace Battery," and "Overload" indicators, accompanied by audible alarms.
✅ APPLICATION
The APC SUA3000I-IND is ideal for:
- Servers and data centers
- Networking equipment (routers, switches, hubs)
- Workstations and high-end PCs
- Telecom and security systems
- Industrial and commercial IT setups
✅ BENIFITS
- Protects equipment from power surges, spikes, and outages
- Ensures data integrity and system uptime
- Reduces downtime with automatic restart and battery backup
- Enhances battery lifespan with temperature-compensated charging
✅ TECHNICAL SPEVIFICATION
| Parameter | Specification |
|---|---|
| Model | APC Smart-UPS SUA3000I-IND |
| Capacity | 3000VA / 2700 Watts |
| UPS Topology | Line-Interactive |
| Input Voltage | 230V (Nominal) |
| Input Voltage Range | 160V – 286V (without battery) |
| Input Frequency | 50/60 Hz ± 3 Hz (auto sensing) |
| Output Voltage | 230V |
| Output Frequency | 50/60 Hz ± 3 Hz |
| Output Waveform | Pure Sine Wave |
| Transfer Time | 2 – 4 ms (typical) |
| Battery Type | Sealed Maintenance-Free Lead Acid (SMF) |
| Battery Configuration | Internal Battery |
| Typical Backup Time | ~5–6 minutes (full load), ~12–15 minutes (half load) |
| Recharge Time | 3 hours to 90% capacity |
| Battery Management | Intelligent battery management with temperature compensation |
| Output Connections | IEC C13 & C19 sockets |
| Communication Ports | USB, Serial (RS-232) |
| Display Type | LED Indicators |
| Audible Alarm | Yes (On battery, low battery, overload) |
| Surge Protection | Yes |
| Efficiency | Up to 98% (with AVR) |
| Form Factor | Tower |
| Cooling | Forced air cooling |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 0% to 95% (non-condensing) |
| Noise Level | < 55 dB |
| Dimensions (H x W x D) | Approx. 435 x 196 x 544 mm |
| Weight | Approx. 52–55 kg |
| Certifications | CE, IEC standards compliant |
| Warranty | 2 Years (UPS), 1 Year (Battery) |
