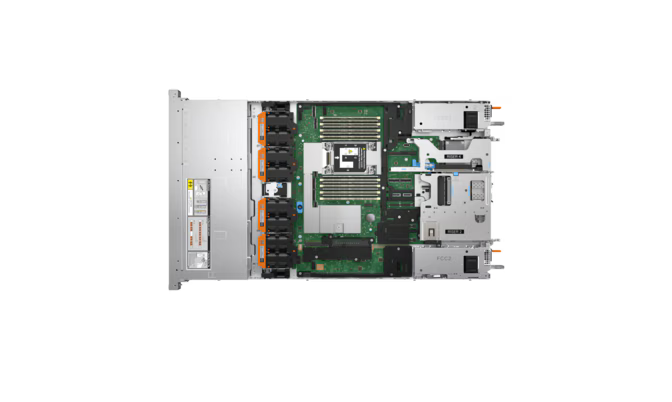

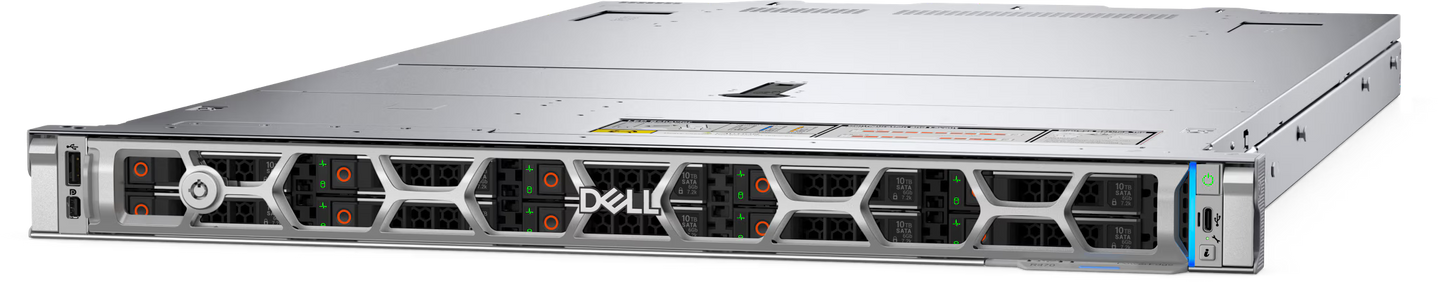

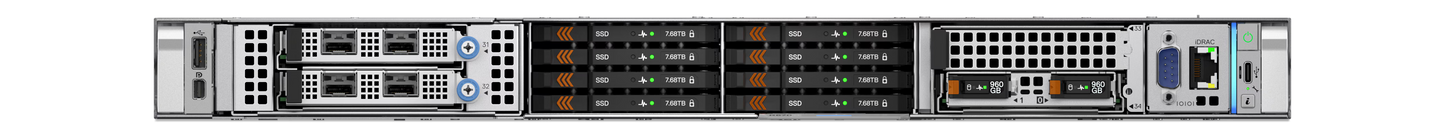

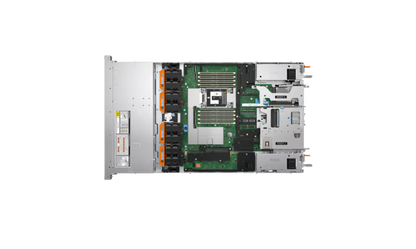

Dell PowerEdge R470 (16-Core) 1U Rack Server with Intel Xeon 6 Performance 6511P

🔹 Product Overview

The Dell PowerEdge R470 is a next-generation 1U single-socket rack server designed for organizations seeking high performance, energy efficiency, and cost-effective scalability. Powered by the Intel Xeon 6 Performance 6511P processor featuring 16 cores and 32 threads, the R470 delivers exceptional computing power for virtualization, cloud workloads, databases, enterprise applications, and software-defined

🔹  Key Features

🔹 Processor

• Intel Xeon 6 Performance 6511P
• 16 Cores / 32 Threads
• Base Clock: 2.3 GHz
• Turbo Boost up to 4.2 GHz
• 72 MB L3 Cache
• Optimized for enterprise and virtualization workloads.

🔹 Form Factor

• Compact 1U Rack Server
• Single-Socket Architecture
• Ideal for high-density data centers and edge deployments.

🔹 Memory

• Up to 16 DDR5 RDIMM slots
• Memory speeds up to 6400 MT/s
• Supports up to 4 TB RAM (processor dependent)
• Enhanced bandwidth for demanding applications.

🔹 Storage Flexibility

• Supports NVMe, SAS, and SATA drives
• Up to 16 x E3.S Gen5 NVMe SSDs
• Multiple storage configurations for performance and capacity requirements
• BOSS-N1 boot-optimized storage support.

🔹 Expansion

• Up to 2 PCIe Gen5 slots
• Optional GPU and accelerator support
• Suitable for AI inferencing, analytics, and virtualization environments.

🔹 Networking

• OCP 3.0 network card support
• Flexible networking options from 1GbE to high-speed connectivity
• Dedicated management port.

🔹 Management

• Dell iDRAC10 with Lifecycle Controller
• RESTful APIs and Redfish support
• Simplified remote monitoring and administration
• Automated deployment and maintenance.

🔹 Security

• Silicon Root of Trust
• Secure Boot
• TPM 2.0
• Secure Erase
• System Lockdown
• Cryptographically Signed Firmware.

🔹 Power Efficiency

• Hot-plug redundant power supplies
• 800W, 1100W, 1400W, and 1500W PSU options
• Designed to reduce operational costs while maximizing performance

🔹 Ideal Applications

✅ VMware & Hyper-V Virtualization
✅ Private & Hybrid Cloud Infrastructure
✅ Database Servers
✅ Enterprise Applications (ERP, CRM)
✅ Web Hosting & Microservices
✅ Software-Defined Storage
✅ AI Edge Computing & Analytics
✅ Scale-Out Data Center

🔹 Why Choose Dell PowerEdge R470?

✔ High-performance Intel Xeon 6 architecture
✔ Efficient single-socket design with lower power consumption
✔ DDR5 memory and PCIe Gen5 support
✔ Enterprise-grade security and management features
✔ Excellent platform for virtualization and cloud deployments
✔ Future-ready infrastructure for growing businesses

🔹 Technical Summary

Specification	Details
Server Type	1U Rack Server
Processor	Intel Xeon 6 Performance 6511P
Cores / Threads	16C / 32T
Base Frequency	2.3 GHz
Max Turbo	4.2 GHz
Cache	72 MB L3
Memory	Up to 16 DDR5 RDIMM Slots
Memory Speed	Up to 6400 MT/s
Storage	NVMe / SAS / SATA
PCIe	Gen5 Expansion Slots
Management	iDRAC10
Power Supplies	Redundant Hot-Plug PSU
Warranty	Dell ProSupport Options Available
