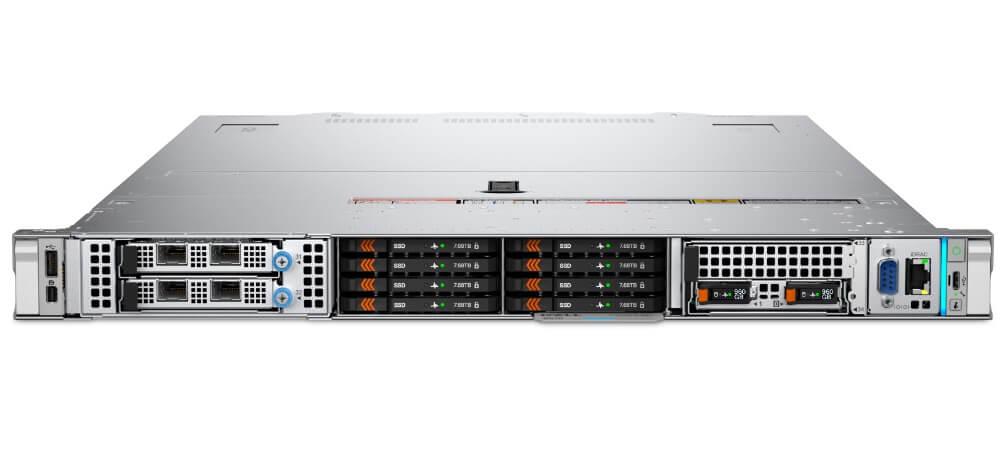

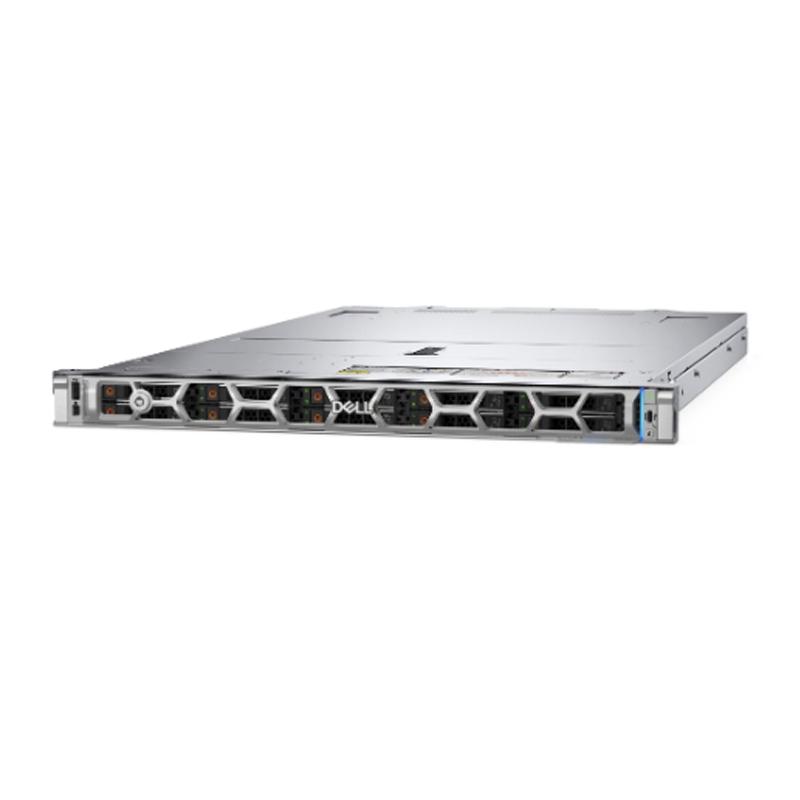

Dell PowerEdge R670 (24C) 1U Rack (Dual Socket) Intel Xeon 6 Performance 6520P

Product Overview

The Dell PowerEdge R670 is a next-generation 1U dual-socket rack server designed to deliver exceptional computing power, high memory bandwidth, and enterprise-class scalability for modern data centers. Equipped with dual Intel Xeon 6 Performance 6520P processors (24 cores each, 48 total cores), the server is optimized for virtualization, cloud infrastructure, software-defined storage, database applications, AI inferencing, and high-density enterprise workloads.

Key Features

🔹 Dual Intel Xeon 6 Performance 6520P Processors

• 24 cores per CPU (48 cores total)
• High clock speeds and enhanced AI acceleration
• Optimized for virtualization, databases, and enterprise applications

🔹 1U High-Density Design

• Compact rack footprint for maximizing data center space utilization
• Ideal for large-scale deployments and colocation environments

🔹 Massive DDR5 Memory Capacity

• Up to 32 DDR5 DIMM slots
• Memory speeds up to 6400 MT/s
• Designed for memory-intensive applications and virtualization platforms

🔹 Flexible Storage Options

• Support for SAS, SATA, and NVMe SSDs
• Up to 8 x 2.5-inch drives or E3.S Gen5 NVMe storage configurations
• Ideal for software-defined storage and high-performance databases

🔹 PCIe Gen5 Expansion

• High-speed PCIe Gen5 connectivity
• Supports advanced networking, storage controllers, and accelerator cards

🔹 Enterprise Management

• Integrated Dell iDRAC management
• Remote monitoring, deployment, and lifecycle management
• Automated server maintenance and firmware updates

🔹 Enhanced Security

• Silicon Root of Trust
• Secure Boot and signed firmware
• System lockdown and BIOS recovery capabilities

Ideal Workloads

✅ VMware & Hyper-V Virtualization
✅ Private & Hybrid Cloud Infrastructure
✅ Microsoft SQL Server & Oracle Databases
✅ Software Defined Storage (SDS)
✅ AI Inference Applications
✅ High-Performance Computing (HPC)
✅ Enterprise ERP & Business Applications
✅ Containerized Workloads (Kubernetes/OpenShift)

Technical Specifications

Specification	Details
Form Factor	1U Rack Server
Processor	2 × Intel Xeon 6 Performance 6520P
Total Cores	48 Cores (24C + 24C)
Processor Sockets	Dual Socket
Memory Slots	Up to 32 DDR5 DIMMs
Maximum Memory	Up to 8 TB DDR5 RDIMM
Memory Speed	Up to 6400 MT/s
Storage Support	SAS, SATA, NVMe SSD
Drive Bays	Up to 8 x 2.5" or 8 x E3.S NVMe
RAID Controllers	PERC H365i / H965i / H975i
Expansion Slots	PCIe Gen5
Power Supplies	Hot-plug Redundant PSU Options
Management	iDRAC Enterprise
Networking	OCP 3.0 Network Adapters
