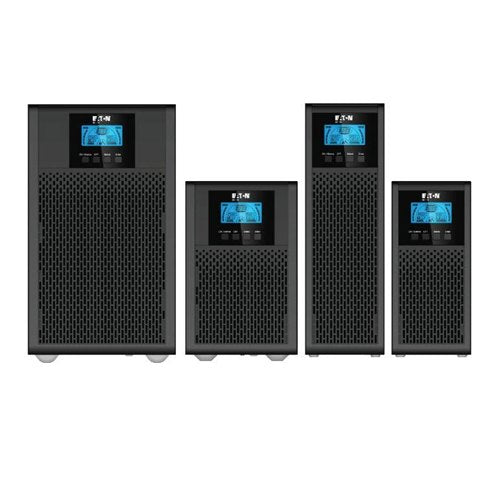

SKU:Eaton 02 kVA 1x1 (Inbuilt Battery) UPS
Value Proposition:
High Performance
True Online Double Conversion
True Input PF 0.99
True output PF 0.9
Output THDv 2%
Higher Power Density
Higher Efficiency upto 98% in ECO Mode
Support Critical Virtualization
High Reliability and Adaptability
Wide Input Voltage Range 110 to 300 Vac
Inbuilt Hardware Current Limit Technology.
Upgraded Phase Lock Algorithm
Inbuilt Over-voltage Cut-off Device
Inbuilt Over Temperature Protection.
Upto 50 Degree Celsius operation @50%
Load (Specific to XL Model)
Better Overload Protection upto 105% Constant
High Flexibility and Availability
Adjustable Charging Current 0 to 1.5 Amps
Better Short Ckt Handling Capacity.
Auto Fault Recovery.
Conformal Coated Boards.
More Accessories.
Major Application
Networking/Server/Storage.
Wiring Closets.
Security and Surveillance System.
Industrial Automation Control.
Laboratory Equipment.
ATM/Telecom/Railway Signaling.
| Technical Specification of Eaton Eaton 9E-IN 2000
|
| Acceptable Input Voltage |
100VAC-300VAC |
| Description |
Eaton 02 kVA 1x1 (Inbuilt Battery) UPS |
| Phase |
Single phase with ground |
| Input Power Factor |
≥0.99(R FULL LOAD)@230V input |
| Input Frequency Range |
45-55Hz / 54-66Hz |
| Output Power(VA) max |
2000 |
| Output Power(W) max |
1800 |
| Output Power Factor |
0.9 |
| Output Waveform |
Pure sine wave |
| DC Voltage |
48VDC |
| Charger Current |
1.5 A |
| WxHxD (mm) |
190 x 327 x 399 |
| Operating Temperature Range |
0°C ~ 40 °C |
| Audible Noise |
<40dB at front 1m@ typical load |
| Relative Humidity |
0 ~ 95% (No condensing) |
