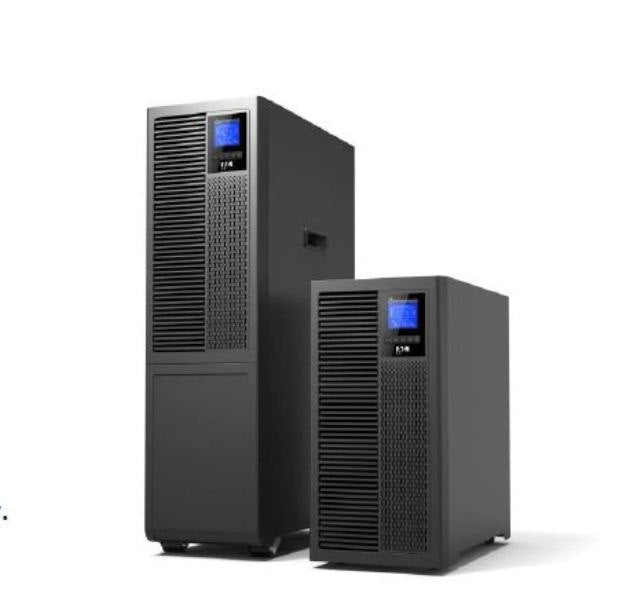

SKU:Eaton 9E6K-IN
Value Proposition:
High Performance
kVA=kW
True Input PF 0.99
True output Unity PF 1
Input THDi 3%
Output THDv 1%
Higher Power Density
Higher Efficiency upto 95%
Support Critical Virtualization
High Reliability and Adaptability
Wide Input Voltage Range
Inbuilt Hardware Current Limit Technology
Upgraded Phase Lock Algorithm
Inbuilt Over-voltage Cut-off Device
Inbuilt Over Temperature Protection
Upto 50 Degree Celsius operation @50%
Load (Specific to XL Model)
Better Overload Protection upto 105% Constant
High Flex ibility and Availability
Adjustable Battery Voltage 192 Vdc-240 Vdc
Adjustable Charging Current 0 A-4 Amps
Parallel Operation upto 3 UPS’s
Better Short Ckt Handling Capacity
Auto Fault Recovery
Inbuilt Maintenance Bypass Switch
Conformal Coated Boards
More Accessories
| Technical Specification of Eaton 9E6K-IN
|
| Acceptable Input Voltage |
110VAC-275VAC |
| Description |
Eaton 06 kVA 1x1 (Internal Battery) UPS |
| Phase |
Single phase with ground |
| Input Power Factor |
≥0.995 |
| Input Frequency Range |
45-55Hz / 54-66Hz (extendable to 40~70HZ when load < 60%) |
| Output Power(VA) max |
6000 |
| Output Power(W) max |
6000 |
| Output Power Factor |
1.0 |
| Output Waveform |
Pure sine wave |
| DC Voltage |
192VDC (192V~240V adjustable) |
| Charger Current |
default 1.4A (0~4A adjustable) |
| WxHxD (mm) |
225*589*452 |
| Operating Temperature Range |
0°C ~ 40 °C (40~50°C 50% load ) |
| Audible Noise |
≤55dB |
| Relative Humidity |
0 ~ 95% (No condensing) |
