📌 Product Overview

  The Eaton 9PX 1000IRT2U UPS is a high-efficiency online double-conversion UPS designed for server racks, IT infrastructure, and mission-critical applications. It delivers unity power factor (1.0), ensuring maximum usable power and superior protection for sensitive equipment.



⚙️ Technical Specifications

🔌 Power Rating

• Capacity: 1000 VA / 1000 Watts
• Topology: Online Double Conversion
• Output Waveform: Pure Sine Wave
• Power Factor: 1.0 (Unity PF)

🔋 Battery Specifications

• Battery Type: Sealed Lead Acid (VRLA)
• Battery Quantity: 4 Batteries
• Battery Rating: 12V / 7Ah
• Features:
  • Hot-swappable batteries
  • Advanced Battery Management (ABM)
  • Automatic battery testing
  • Deep discharge protection
  • Supports Extended Battery Modules (EBM)

⚡ Input Specifications

• Nominal Voltage: 230V
• Input Voltage Range: 176–276V (wide range)
• Frequency Range: 40–70 Hz
• Input Power Factor: >0.99

🔌 Output Specifications

• Output Voltage: 200/208/220/230/240V (configurable)
• Voltage Regulation: ±1%
• Output Frequency: 50/60 Hz

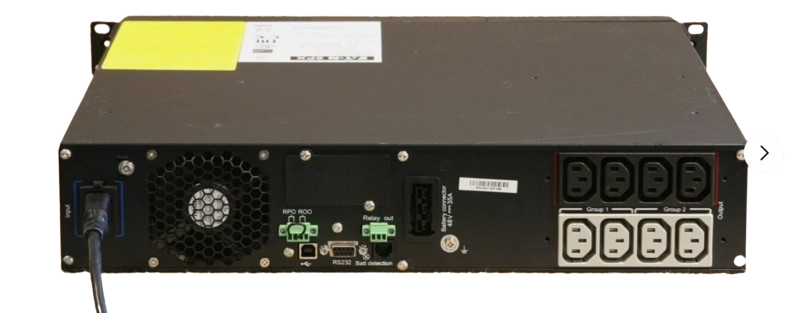

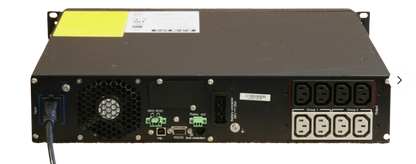

• Output Connections: 8 × IEC C13
• Harmonic Distortion: <3%

🖥️ Communication & Interface

• USB (HID compliant)
• RS232 Serial Port
• Dry Contact Interface
• Remote ON/OFF control
• 1 Expansion Slot for Network Card
• LCD Display: Multilingual graphical display
• Software: Eaton Intelligent Power Manager & Protector

🌍 Physical & Environmental

• Form Factor: Rack/Tower Convertible (2U)
• Dimensions: 440 × 450 × 86.5 mm
• Weight: ~19.5 kg
• Noise Level: <35 dB
• Operating Temperature: 0°C to 40°C
• Efficiency: Up to 91.5%
• Certifications: CE, UL, IEC, ENERGY STAR

🚀 Key Features

• Unity Power Factor (More usable power)
• Energy-efficient (ENERGY STAR certified)
• Internal bypass for uninterrupted operation
• Virtualization-ready (VMware, Hyper-V, Citrix)
• Advanced load management & metering
• Rack & tower installation flexibility

Energy efficient power protection

Performance and efficiency

9PX is the first UPS in its class to provide Unity power factor
(VA=W). It delivers 11% more power than any other UPS as
well as powering more servers with equivalent VA ratings
and lower power factors.
• Energy Star qualified, the 9PX provides the highest efficiency
level to reduce energy and cooling costs.
• Double conversion topology. The Eaton 9PX constantly
monitors power conditions and regulates voltage and
frequency.
• With a versatile Rack/Tower form factor, the 9PX is the most
compact solution delivering up to 3000W in only 2U.

Manageability
• The graphical LCD display provides clear information on the
UPS’s status and measurements on a single screen. Enhanced
configuration capabilities are also available.
• 9PX can meter energy consumption right down to the
managed outlet groups. kWh values can be monitored using
the LCD or Eaton’s Intelligent Power TM Software.
• Load segment control enables prioritised shutdowns of
non-essential equipment to maximize battery runtime for
critical devices.
• 9PX offers Serial and USB connectivity, plus an extra slot for
an optional communication card. Eaton’s Intelligent Power
Software seamlessly integrates with leading virtualisation
environments and cloud orchestrations tools

Advanced protection for:
• Small and Medium Datacentre
• IT, Networking, Storage and Telecom
• Infrastucture, Industrial and Medical
